Old 01-08-2012, 06:04 PM   #1
Registered Member
Regular

Evolution's Avatar

Join Date: Aug 2011
Region: Alabama
Posts: 414
Gasket blown

Just replaced oil filter, did an oil change and replaced fuel filter, spark plugs. I toke it for a drive and it was fine, went and got something to eat then got back in, started it up and it didn't start very well. Drove it on the road and I was puking white smoke, and my car was shaking pretty bad. Talked to my dad and he says I blew a gasket......great!

---------- Post added at 05:04 PM ---------- Previous post was at 04:34 PM ----------

Gonna have to replace em both, never done it before. Anyone got any documents of some sort to take apart the engine for a blown gasket?
Evolution is offline   Reply With Quote
Sponsored Links
Advertisement

Old 01-09-2012, 03:18 AM   #2
Registered Member
Regular

V6 stang's Avatar

Join Date: Dec 2011
Region: Texas
Posts: 2,252
Ouch.. Good luck man I wish you the best, i am no help though. How many miles on it?
__________________
"Hp sells cars, Tq wins races" - Carroll Shelby... RIP
2012 Mustang GT Convertible
Roush Exhaust

2003 Mustang GT (Sold)
1999 35th Anniversary V6(SOLD)
V6 stang is offline   Reply With Quote
Old 01-09-2012, 08:15 AM   #3
Registered Member
Regular

Evolution's Avatar

Join Date: Aug 2011
Region: Alabama
Posts: 414
Thanks, and it has 204000, around there.
Evolution is offline   Reply With Quote
Sponsored Links
Advertisement

Old 01-09-2012, 10:18 AM   #4
Registered Member
Regular

Project Pony's Avatar

Join Date: Jan 2011
Location: Aiken
Region: South Carolina
Posts: 3,274
Head gaskets suck to replace, not cheap. I had a 94 that blew its head gasket. It was swapped for a 98 motor as they were not supposed to be as susceptible to head gasket issues. Time consuming to replace them yourself, and you should still have ttyhe block checked and the heads shaved for a nice flat surface for the new gasket.
__________________
[SIGPIC][/SIGPIC]
Project Pony is offline   Reply With Quote
Old 01-09-2012, 10:19 AM   #5
Moderator Emeritus
Regular

deadsp0t's Avatar

Join Date: Aug 2011
Location: MidWorld
Region: Other
Posts: 4,786
Quote:
Originally Posted by Evolution
Thanks, and it has 204000, around there.
That's a good amount of miles. How many did you put on it?
__________________
That's unimpressive
deadsp0t is offline   Reply With Quote
Old 01-09-2012, 10:22 AM   #6
Registered Member
Regular

Project Pony's Avatar

Join Date: Jan 2011
Location: Aiken
Region: South Carolina
Posts: 3,274
To be of more help I'd say to go pick up a chilton or Haynes repair book. Great investment for a new grease monkey, can be had for about 25 bucks at your favorite auto parts store.
__________________
[SIGPIC][/SIGPIC]
Project Pony is offline   Reply With Quote
Old 01-09-2012, 10:24 AM   #7
Moderator Emeritus
Regular

deadsp0t's Avatar

Join Date: Aug 2011
Location: MidWorld
Region: Other
Posts: 4,786
Quote:
Originally Posted by Project Pony
To be of more help I'd say to go pick up a chilton or Haynes repair book. Great investment for a new grease monkey, can be had for about 25 bucks at your favorite auto parts store.
Good advise!! Sometimes they can be had cheaper too! If you need one cheap try half.com.
__________________
That's unimpressive
deadsp0t is offline   Reply With Quote
Old 01-09-2012, 12:07 PM   #8
Road Trip!

Join Date: Dec 2011
Region: Texas
Posts: 177
Re: Gasket blown

Never broken down a single port. But a split port isn't that bad of a change.

Just doing it myself right now infact.

Your gonna need a basic tool kit. Mines a 200 something peice craftsman kit. Ive got a few extra tools n stuff here n there.

+1 to buying a Chiltons, thats what I used.

Basically gonna wanna drain that oil incase you got coolant in it.
Drain coolant down.

And get a camera !!!! If this is your first time ti dig through the engine seriously you'll want to take lots and lots of pictures so you know how things go back together ! very important!

Anyways, unhook battery, and start removing things, accessories, ignition, upper intake, then lower, then you'll have access to the heads, head bolts are a ***** to remove, tty bolts are tight as hell, get them out and lift your heads. Aluminum is damaged easily. So be carefull with the heads. you'll want to have them checked at a machine shop also for warp. Sometimes head gaskets just fail. early sn95's were famous for this anyways. But sometimes over heating damage can cause it to warp and kill the gasket.

Clean things up and check it well.

You'll need gaskets to put it all back together.

For the split port, I spent about 45$ ish per head gasket straight from a ford dealer ship. Fel Pro from your local auto will be fine im sure. Then I went to auto store, picked up two boxes of head bolts, and a lower intake gasket set. and some thread locker and sealant. That purchase was right around 100$.

So your already looking at 200 in parts.


Just know this is a "big" project, but you can do it if you want to. But it sounds like your dad may know or thing or two, so im sure he can help you out alot ! Good luck ! maybe someone w/ more single port knowledge can refine that.
SenorMike is offline   Reply With Quote
Old 01-09-2012, 01:11 PM   #9
Registered Member
Regular

Evolution's Avatar

Join Date: Aug 2011
Region: Alabama
Posts: 414
Quote:
Originally Posted by deadsp0t

That's a good amount of miles. How many did you put on it?
About 2,000, I've had lots of problems with my car, last owner was a real dumbass.

---------- Post added at 12:09 PM ---------- Previous post was at 12:07 PM ----------

Quote:
Originally Posted by SenorMike
Never broken down a single port. But a split port isn't that bad of a change.

Just doing it myself right now infact.

Your gonna need a basic tool kit. Mines a 200 something peice craftsman kit. Ive got a few extra tools n stuff here n there.

+1 to buying a Chiltons, thats what I used.

Basically gonna wanna drain that oil incase you got coolant in it.
Drain coolant down.

And get a camera !!!! If this is your first time ti dig through the engine seriously you'll want to take lots and lots of pictures so you know how things go back together ! very important!

Anyways, unhook battery, and start removing things, accessories, ignition, upper intake, then lower, then you'll have access to the heads, head bolts are a ***** to remove, tty bolts are tight as hell, get them out and lift your heads. Aluminum is damaged easily. So be carefull with the heads. you'll want to have them checked at a machine shop also for warp. Sometimes head gaskets just fail. early sn95's were famous for this anyways. But sometimes over heating damage can cause it to warp and kill the gasket.

Clean things up and check it well.

You'll need gaskets to put it all back together.

For the split port, I spent about 45$ ish per head gasket straight from a ford dealer ship. Fel Pro from your local auto will be fine im sure. Then I went to auto store, picked up two boxes of head bolts, and a lower intake gasket set. and some thread locker and sealant. That purchase was right around 100$.

So your already looking at 200 in parts.

Just know this is a "big" project, but you can do it if you want to. But it sounds like your dad may know or thing or two, so im sure he can help you out alot ! Good luck ! maybe someone w/ more single port knowledge can refine that.
Alright, cool! Thanks that helped a lot. Ill look into buying one of those books, I'm doing the gasket this weekend so I'll see how it goes. Looks like I'm taking the bus to school this week

---------- Post added at 12:11 PM ---------- Previous post was at 12:09 PM ----------

Are the 96, v6 mustangs split port?
Evolution is offline   Reply With Quote
Old 01-09-2012, 02:05 PM   #10
Road Trip!

Join Date: Dec 2011
Region: Texas
Posts: 177
Re: Gasket blown

you need to do both heads, and if you do things properly a machine shop needs to test your heads ... If something is wrong with the heads it'll just blow again.

And 99-2004 are split port. 98 and earlier are single.
SenorMike is offline   Reply With Quote
Old 01-09-2012, 02:32 PM   #11
Registered Member
Regular

Rascal's Avatar

Join Date: Mar 2010
Region: Ohio
Posts: 30
Re: Gasket blown

Don't quote me on this but I'm pretty sure you have to buy new head bolts too.. they are stretched when they are torqued down.. one time use bolt
Rascal is offline   Reply With Quote
Old 01-09-2012, 09:45 PM   #12
Registered Member
Regular

Evolution's Avatar

Join Date: Aug 2011
Region: Alabama
Posts: 414
Got the upper intake manifold removed, do I have to remove each injector from the head or just remove the lines? And how?
Evolution is offline   Reply With Quote
Old 01-09-2012, 10:17 PM   #13
Road Trip!

Join Date: Dec 2011
Region: Texas
Posts: 177
Re: Gasket blown

Quote:
Originally Posted by Rascal View Post
Don't quote me on this but I'm pretty sure you have to buy new head bolts too.. they are stretched when they are torqued down.. one time use bolt
Quote:
Originally Posted by Evolution View Post
Got the upper intake manifold removed, do I have to remove each injector from the head or just remove the lines? And how?
mine are the tty bolts that you do have to replace each time, Im sure his are the same. Do NOT reuse your head bolts.

On my car, the injectors are held in the heads by a rubber O ring. They'll just pop out all together. I just lifted them and left them on the fuel rail.

---------- Post added at 10:17 PM ---------- Previous post was at 10:08 PM ----------

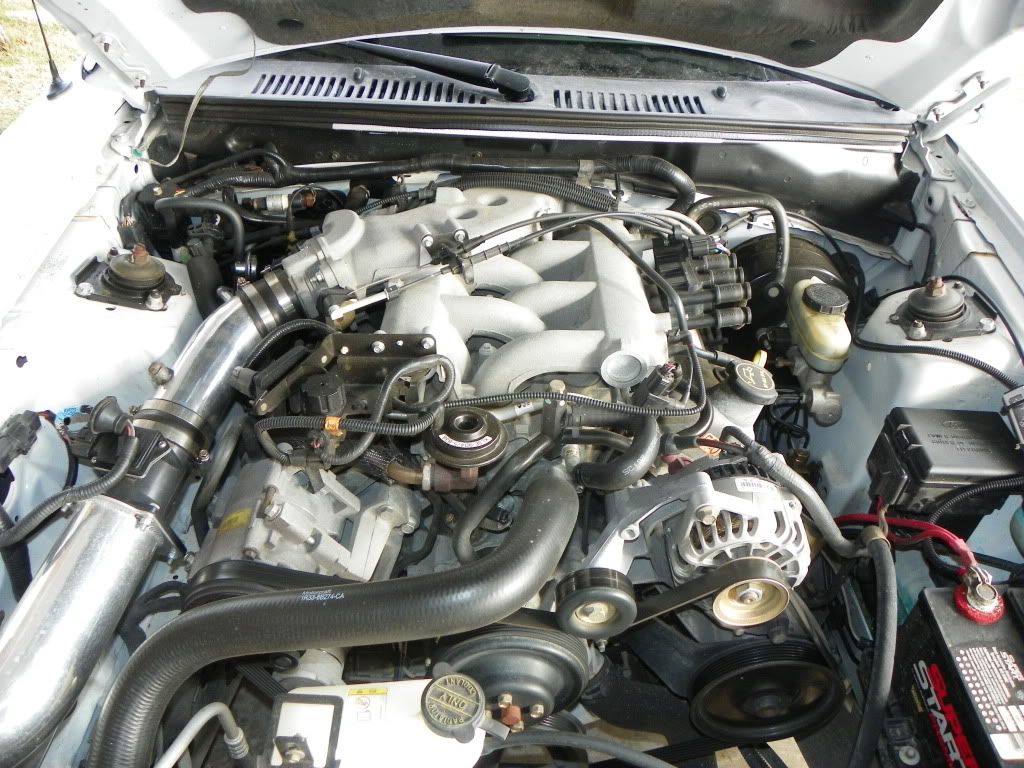

I know this is a split port but ... close enough ... but far enough at the same time lol


SenorMike is offline   Reply With Quote
Old 01-09-2012, 10:32 PM   #14
Registered Member
Regular

Evolution's Avatar

Join Date: Aug 2011
Region: Alabama
Posts: 414

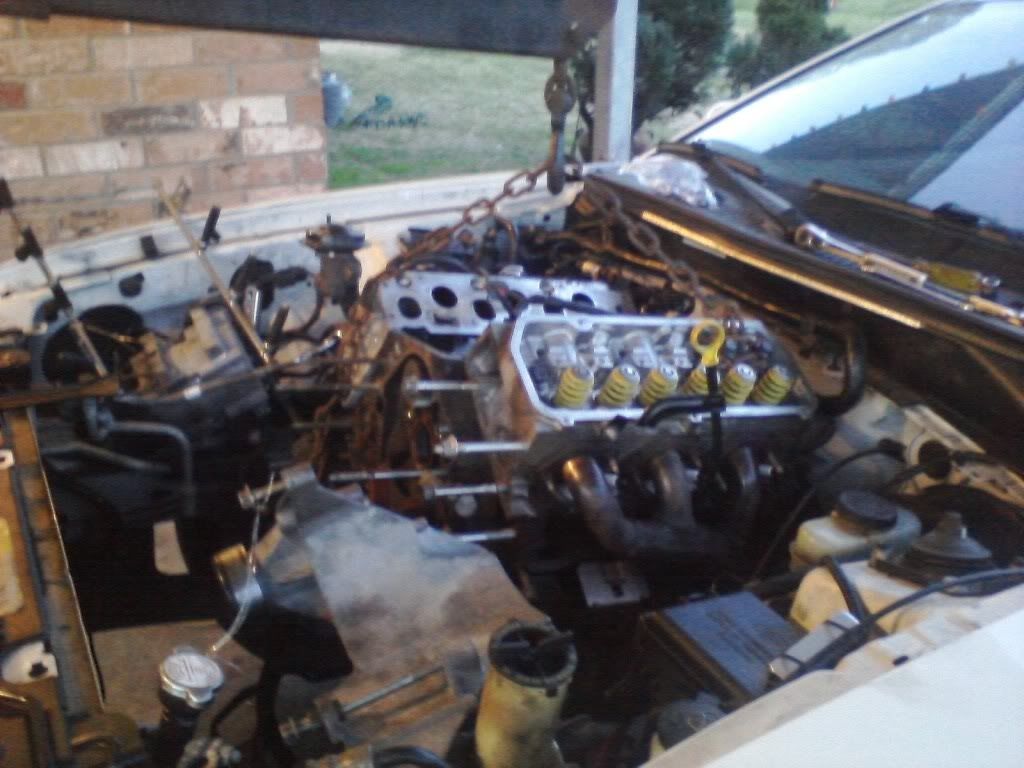

Oh ok, yea I'm just about there, not too much more.
Attached Thumbnails
Click image for larger version

Name:	image-3021761040.png
Views:	169
Size:	1.65 MB
ID:	37744   Click image for larger version

Name:	image-4214867231.png
Views:	139
Size:	1.66 MB
ID:	37745

Evolution is offline   Reply With Quote
Old 01-09-2012, 10:45 PM   #15
Road Trip!

Join Date: Dec 2011
Region: Texas
Posts: 177
Re: Gasket blown

OMG thankfully I decided to play with my split port and not a single port. What a cluster **** those things are lol
SenorMike is offline   Reply With Quote
Old 01-09-2012, 11:12 PM   #16
Registered Member
Regular

Evolution's Avatar

Join Date: Aug 2011
Region: Alabama
Posts: 414
Haa yea! Pain in the *** man! But we had replaced the water pump recently so most of it wasn't new, took us 2 hours to get to that! And we just did an oil change 15 mins before the gasket blew....lol there goes $30.

---------- Post added at 10:12 PM ---------- Previous post was at 10:01 PM ----------

Also do you mind taking a couple pics and/or describing where all the vacuum lines are? That would be greatly appreciated.
Evolution is offline   Reply With Quote
Old 01-11-2012, 08:09 AM   #17
Registered Member
Regular

Project Pony's Avatar

Join Date: Jan 2011
Location: Aiken
Region: South Carolina
Posts: 3,274
+1 on new head bolts
__________________
[SIGPIC][/SIGPIC]
Project Pony is offline   Reply With Quote
Old 01-11-2012, 10:49 PM   #18
Registered Member
Regular

Evolution's Avatar

Join Date: Aug 2011
Region: Alabama
Posts: 414
Ok almost there! Having problems getting the far bolt on the drivers side on holding the head. And all of my bolts holding the head from the top were all unevenly tightened.... Anyways here are some pics!
Attached Thumbnails
Click image for larger version

Name:	image-1586584428.png
Views:	123
Size:	1.68 MB
ID:	37887   Click image for larger version

Name:	image-2695197226.png
Views:	148
Size:	1.68 MB
ID:	37888

Evolution is offline   Reply With Quote
Old 01-12-2012, 03:28 AM   #19
Registered Member
Regular

robb15033's Avatar

Join Date: Oct 2010
Location: Northern Virginia
Region: Virginia
Posts: 2,109
Re: Gasket blown

Great job dude. Thats great motivation. The more pics the better. I have a single port also and I'm trying to learn right along with you. Good luck and thanks for the thread posting-
__________________
'97 3.8L V6
Pacific Green
1996 SVT Cobra White
robb15033 is offline   Reply With Quote
Old 01-12-2012, 10:09 AM   #20
Road Trip!

Join Date: Dec 2011
Region: Texas
Posts: 177
Re: Gasket blown

Quote:
Originally Posted by Evolution View Post
Ok almost there! Having problems getting the far bolt on the drivers side on holding the head. And all of my bolts holding the head from the top were all unevenly tightened.... Anyways here are some pics!
tty bolts "stretch" so im sure thats part of your problem, unless someone has redone those ... lol

Their is a specific way to do them and I just want you to know its going to be a huge PITA when you go to install the heads with that brake booster in the way ...

Id look into pulling that or pulling the whole motor lol.

Im in the middle of the same project, bought stall while its out so im waiting on that before I put the motor back in, but anyways, I just pulled the whole damn motor just to do the gaskets
SenorMike is offline   Reply With Quote
Old 01-12-2012, 10:34 AM   #21
Registered Member
Regular

Evolution's Avatar

Join Date: Aug 2011
Region: Alabama
Posts: 414
Ha yea well we would love to get the motor out but we don't have anyway to get it out. But we are taking the brake booster out, but even then it's hard to get enough leverage down there, I guess we'll see how it goes.

---------- Post added at 09:34 AM ---------- Previous post was at 09:32 AM ----------

I believe someone did mess with those bolts, my dad was saying some of the stuff in there is not factory. So I'm guessing it wasn't a mechanic that went in there and changed them....not sure though, just a guess.
Evolution is offline   Reply With Quote
Old 01-12-2012, 10:41 AM   #22
Road Trip!

Join Date: Dec 2011
Region: Texas
Posts: 177
Re: Gasket blown

What year is it again ? 94&95 had alot of head gasket issues. 96 they changed size of heads and improved this problem. Also not sure when they bumped up to using a mls gasket.
SenorMike is offline   Reply With Quote
Old 01-12-2012, 10:47 AM   #23
Registered Member
Regular

Evolution's Avatar

Join Date: Aug 2011
Region: Alabama
Posts: 414
Its a 96, but the previous owner had overheated the engine. I have visible heat cracks on the top of my hood.
Evolution is offline   Reply With Quote
Old 01-12-2012, 11:16 AM   #24
Road Trip!

Join Date: Dec 2011
Region: Texas
Posts: 177
Re: Gasket blown

Over heating a Iron engine w/ aluminum heads lol FAIL
SenorMike is offline   Reply With Quote
Old 01-12-2012, 12:04 PM   #25
Registered Member
Regular

irishn8's Avatar

Join Date: Jan 2012
Region: Washington
Posts: 721
Was this ur first oil change? Do u know what oil was used b4? its always a red flag when something happens right hafter some work was done, makes me think that something may not have been done right. Let's say the heads were already worped a little bit due to the overheat then u used an oil with less viscosity, maybe that was enough to make it happen. Even if u used the oild that the manual described, maybe it had high milage b4 or some lucas oil in it. Idk but id try to figure it out.
irishn8 is offline   Reply With Quote
Old 01-12-2012, 12:18 PM   #26
Registered Member
Regular

Evolution's Avatar

Join Date: Aug 2011
Region: Alabama
Posts: 414
Yes this was my first oil change on this car, I'm not sure what oil he used but I'll try and contact him. Thanks for the heads up though! Helps a lot.
Evolution is offline   Reply With Quote
Old 01-12-2012, 09:23 PM   #27
Registered Member
Regular

Evolution's Avatar

Join Date: Aug 2011
Region: Alabama
Posts: 414
How about putting on an eaton m90 supercharger on? Would that be a good option?......took off the passenger side head. I'll post pics in a bit.
Evolution is offline   Reply With Quote
Old 01-12-2012, 10:57 PM   #28
Registered Member
Regular

Evolution's Avatar

Join Date: Aug 2011
Region: Alabama
Posts: 414
I think that's a problem....
Attached Thumbnails
Click image for larger version

Name:	image-319682384.png
Views:	133
Size:	932.7 KB
ID:	37997
Evolution is offline   Reply With Quote
Old 01-12-2012, 11:07 PM   #29
Registered Member
Regular

irishn8's Avatar

Join Date: Jan 2012
Region: Washington
Posts: 721
Ewww
irishn8 is offline   Reply With Quote
Old 01-13-2012, 06:36 AM   #30
Registered Member
Regular

Project Pony's Avatar

Join Date: Jan 2011
Location: Aiken
Region: South Carolina
Posts: 3,274
Ouch that's no fun
__________________
[SIGPIC][/SIGPIC]
Project Pony is offline   Reply With Quote
Old 01-13-2012, 07:39 AM   #31
Road Trip!

Join Date: Dec 2011
Region: Texas
Posts: 177
Re: Gasket blown

Quote:
Originally Posted by Evolution View Post
How about putting on an eaton m90 supercharger on? Would that be a good option?......took off the passenger side head. I'll post pics in a bit.
you'll want the entire engine from a super coupe to swap on. Stock mustang heads aren't so great w/ the m90. And you'd have to drop the boost I think w/ a weak sauce mustang block lol

Quote:
Originally Posted by Evolution View Post
I think that's a problem....
Mehhh maybe -_-

WTF kind of head gasket was used there ?


Ohh and you are officially the first person Ive ever seen post a picture of heads off a car and the spark plug still be in them lol
SenorMike is offline   Reply With Quote
Old 01-13-2012, 10:10 AM   #32
Registered Member
Regular

Evolution's Avatar

Join Date: Aug 2011
Region: Alabama
Posts: 414
Quote:
Originally Posted by SenorMike

you'll want the entire engine from a super coupe to swap on. Stock mustang heads aren't so great w/ the m90. And you'd have to drop the boost I think w/ a weak sauce mustang block lol

Mehhh maybe -_-

WTF kind of head gasket was used there ?

Ohh and you are officially the first person Ive ever seen post a picture of heads off a car and the spark plug still be in them lol
So you would suggest no supercharger?
Ha thats funny, i didn't know you had to take em out, looked easier to leave them in.
Evolution is offline   Reply With Quote
Old 01-13-2012, 10:24 AM   #33
Road Trip!

Join Date: Dec 2011
Region: Texas
Posts: 177
Re: Gasket blown

Quote:
Originally Posted by Evolution View Post
So you would suggest no supercharger?
Ha thats funny, i didn't know you had to take em out, looked easier to leave them in.
I just wouldn't risk damaging them. Plus once you break threads loose, usually easy enough to come out by hand.

Well Id say if you want the M90 set up to get a full supercoupe motor to swap over. You cant just bolt the m90 on to your car.
SenorMike is offline   Reply With Quote
Old 01-13-2012, 10:29 AM   #34
Registered Member
Regular

Evolution's Avatar

Join Date: Aug 2011
Region: Alabama
Posts: 414
Quote:
Originally Posted by SenorMike

I just wouldn't risk damaging them. Plus once you break threads loose, usually easy enough to come out by hand.

Well Id say if you want the M90 set up to get a full supercoupe motor to swap over. You cant just bolt the m90 on to your car.
Oh I see, and we just replaced them, they don't even have 30km driving with em. How much are supercoupe motors? Sounds like quite a job for just a supercharger.
Evolution is offline   Reply With Quote
Old 01-13-2012, 02:18 PM   #35
Road Trip!

Join Date: Dec 2011
Region: Texas
Posts: 177
Re: Gasket blown

Quote:
Originally Posted by Evolution View Post
Oh I see, and we just replaced them, they don't even have 30km driving with em. How much are supercoupe motors? Sounds like quite a job for just a supercharger.
lol depends on your skill level.

And pulling an engine isn't to hard.

Basically you need to pull yourengine from your tranny, drop in the SC engine and accsesories, a little custom wiring and some fabbing to AC lines and you have 215 crank HP and a bit mroe tq lol.

While you have that engine out throw some headers on it, a decent cam, and maybe do some porting work and a few adjustments to the m90 and you'll be having alot more fun.


Still not alot of power. Turbo is the way to go no matter what.

But depending on how you shop an m90 swap can be VERY cheap FI set up.

Ive seen complete motors from 350-1000. Find one cheap, do mods to make it work, new intercooler, tuner and dyno tune. Probably need bigger fuel pump and injectors if you dont leave it stock.
SenorMike is offline   Reply With Quote
Reply

Lower Navigation
Go Back   Mustang Evolution > 4 Cylinder | V6 | Classic Mustangs || Tech and Talk > Pre-2005 V6 Mustang

Thread Tools Search this Thread
Search this Thread:

Advanced Search

Posting Rules
You may not post new threads
You may not post replies
You may not post attachments
You may not edit your posts

BB code is On
Smilies are On
[IMG] code is On
HTML code is Off
Trackbacks are Off
Pingbacks are On
Refbacks are Off


Similar Threads
Thread Thread Starter Forum Replies Last Post
Head Gasket Question!?!?!? FORDGT14 1996-2004 Mustang GT 33 12-31-2011 01:19 PM
Intake Manifold Gasket (Continuation) Mustang1804 1996-2004 Mustang GT 4 12-20-2011 03:09 PM
Intake Manifold Gasket Mustang1804 1996-2004 Mustang GT 9 11-29-2011 11:11 AM
header gasket...agian:( mystang50 1979-1995 Mustang GT 18 11-24-2011 11:17 PM
Head gasket question ? WhiteCobra94 1979-1995 Mustang GT 17 08-30-2011 10:33 AM

» Like Us On Facebook



07:24 AM


Powered by vBulletin® Version 3.8.8
Copyright ©2000 - 2017, vBulletin Solutions, Inc.
Content Relevant URLs by vBSEO 3.6.0

MustangEvolution.com is in no way associated with or endorsed by Ford Motor Company.
