Tex's Snorkel work

Well started on the snorkel a bit. Not much done today. More of getting fitment and amount of material ideas.

this is what the new airbox looks like to accept my K&N cone filter i used in my ghetto fabbed FIPK
(forgive camera phone pics, but camera was dead when the box was finished)




here is what the filter looks like in my box

got a couple inches all around the filter to allow air flow.

i never worried about it before when i had my FIPK

Here is FIPK


but anyways, i never worried about the bracket for the factory airbox with the FIPK in it cause it fit perfect in there, so i will have to modify it

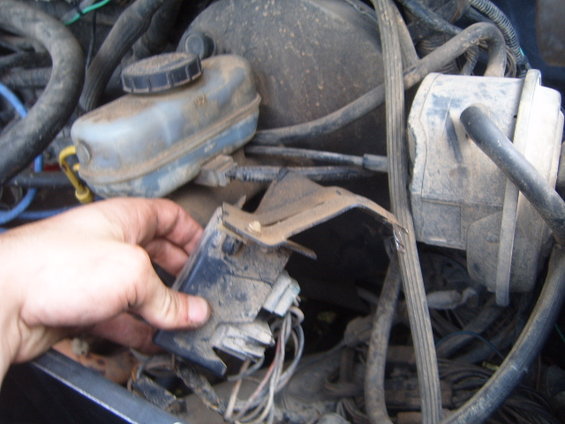

I am gonna get my angle grinder back from my dad and cut most of it out, but leave enough for the winshield washer resevoir to stay in location, and relocate the connector thingy mebob that is attached to the bracket

if i dont, the new air box will look like this in there


this is as far as i got today. I have to wait till I go into town and stop at lowes to proceed any further. (dont want to waste gas to go today)

Need a 3" hole saw, my grinder, PVC pipe and bends, silcone, and 2 new hose clamps that i have been meaning to replace for awhile now.
__________________


Supermotors

Co-Founder of the Non-Mustang Owners Club
SrATEX is offline   Reply With Quote
Sponsored Links
Advertisement

Old 08-27-2006, 05:11 PM   #2
n8r
Legacy Member
Legacy

n8r's Avatar

Join Date: May 2003
Region: Alabama
Posts: 3,216
Re: Tex's Snorkel work

sweet. im gonna get a snorkel one of these days.
__________________
Quote:
Originally Posted by Brent
Nothing is ever official until its official
n8r is offline   Reply With Quote
Old 08-27-2006, 06:34 PM   #3
Legacy Member
Legacy

KyleUSAF's Avatar

Join Date: Jun 2004
Region: Georgia
Posts: 802
Send a message via AIM to KyleUSAF Send a message via MSN to KyleUSAF
Re: Tex's Snorkel work

looks like some good work...
__________________

Quote:
Originally Posted by Darkshadow
I could say nothing for my complete awe. He then. confidantly, purchased the gallon.
KyleUSAF is offline   Reply With Quote
Sponsored Links
Advertisement

Old 08-28-2006, 09:45 AM   #4
Moderator Emeritus
Legacy
Regular

SpectorV's Avatar

Join Date: May 2003
Region: Alabama
Posts: 26,049
Send a message via AIM to SpectorV
Re: Tex's Snorkel work

Quote:
Originally Posted by n8r View Post
sweet. im gonna get a snorkel one of these days.
You should so when you dont put it in gear and only use the E-Brake and it rolls out into the street and blocks traffic you will know it wont go dead in deep water.
__________________
2003 Cobra Vert (Redfire) #3938 of 5082 @ 05/27/2003
472rwhp/493rwtq -Modification List - Dyno Sheet
2012 Mustang 3.7L M6 (Kona Blue)
2011 Ford Edge Sport (Red Metallic)
SpectorV is offline   Reply With Quote
Old 08-28-2006, 02:40 PM   #5
Legacy Member
Legacy

fast64's Avatar

Join Date: May 2003
Region: Georgia
Posts: 3,263
Send a message via AIM to fast64
Re: Tex's Snorkel work

Pretty cool man. I assume your gonna run it across the fender and up the A-pillar like most trucks?
__________________
-Jimmy I drive a station wagon.
GO BRAVES
fast64 is offline   Reply With Quote
Old 08-28-2006, 05:17 PM   #6
Legacy Member
Legacy

SrATEX's Avatar

Join Date: Apr 2005
Region: Alabama
Posts: 88
Re: Tex's Snorkel work

yeah, it will exit about mid fender at the top then run up the a-pillar. just gotta figure out a way to secure it to the body. thinking large clamps that you run a bolt through, hard to explain, but there are a ton on C-130s (probably where i would get htem from too) but im not so sure how well it will hold up like that, to loose if you know what i mean.

I was origionally thinking of running it through the firewall, but it being a 5.8l EFI engine, too much crap on the drivers side firewall, and i cant think of a good way of turning it the other direction without a ton of new hoses and ****
__________________


Supermotors

Co-Founder of the Non-Mustang Owners Club
SrATEX is offline   Reply With Quote
Old 09-04-2006, 05:10 PM   #7
Legacy Member
Legacy

SrATEX's Avatar

Join Date: Apr 2005
Region: Alabama
Posts: 88
Re: Tex's Snorkel work

ok here is todays work on the rig

air box now fits in the rig

had to take the factory airbox/washer fluid resivoir out though

till i find a suitable place to relocate this, i just cut that chunk of the bracket off

cutting into the sheetmetal again, everyone said after i cut my fenders it wouldnt be hard to lose more sheetmetal, still pained me to make this cut

should have bought a bigger hole saw, after an hour of fawking with it, i just couldnt make the 3" hole work, kinda like trying to stick the square into a circle type thing, they just dont fit

my work area, notice the dryer vent, yeah that failed miserably

so instead of coming out of the fender with the dryer vent into a the pvc, i used my 90* bend that was for the top of the snorkel thier instead, now yet again i gotta go to lowes

bottom portion painted up

test fitting the top portion

from inside the cab, not much blockage worth really mentioning

does not intefere with the door operation

under the hood

all painted up and mounted

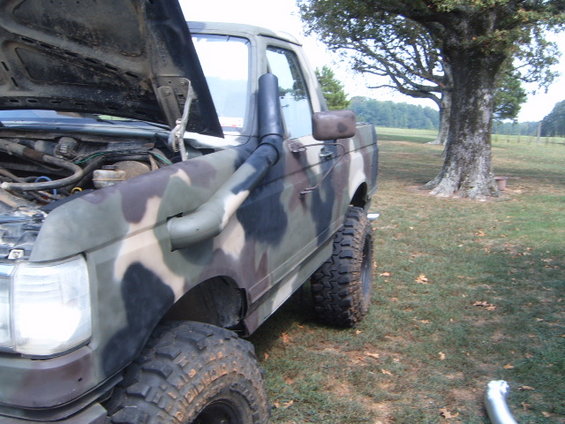

doesnt stick out very far (notice the condisation in the blinker, oct 04 is when i sank the damn truck, i think i need to take the lense off sometime and dry it out
