Old 06-22-2012, 10:22 AM   #176
Registered Member
Regular

32vNomad's Avatar

Join Date: May 2011
Region: Michigan
Posts: 655
As far as 2v heads go there are no difference in performance. But romeo heads are really the mustang head. The windsor was only used in 01's to help with production. If your going with an aluminum block id got with romeos
32vNomad is offline   Reply With Quote
Sponsored Links
Advertisement

Old 06-22-2012, 11:49 AM   #177
Registered Member
Regular

Sonicblue11's Avatar

Join Date: Oct 2011
Location: Williamstown
Region: New Jersey
Posts: 542
Quote:
Originally Posted by 32vNomad
As far as 2v heads go there are no difference in performance. But romeo heads are really the mustang head. The windsor was only used in 01's to help with production. If your going with an aluminum block id got with romeos
What about trick flow for 2v heads?
Sonicblue11 is offline   Reply With Quote
Old 06-22-2012, 12:22 PM   #178
Registered Member
Regular

Newline's Avatar

Join Date: Jan 2012
Region: New Jersey
Posts: 156
Those heads are great but expensive. They work so well because the intake valve is re located to be much less shrouded
Newline is offline   Reply With Quote
Sponsored Links
Advertisement

Old 06-22-2012, 02:43 PM   #179
Registered Member
Regular

Sonicblue11's Avatar

Join Date: Oct 2011
Location: Williamstown
Region: New Jersey
Posts: 542
Quote:
Originally Posted by Newline
Those heads are great but expensive. They work so well because the intake valve is re located to be much less shrouded
Gotcha what are good heads for a good price? I want more power because I'm rebuilding my 2v
Sonicblue11 is offline   Reply With Quote
Old 06-22-2012, 02:49 PM   #180
Registered Member
Regular

Newline's Avatar

Join Date: Jan 2012
Region: New Jersey
Posts: 156
TEA has some good stuff and so does patriot if you go with their higher end products
Newline is offline   Reply With Quote
Old 06-22-2012, 03:07 PM   #181
Registered Member
Regular

32vNomad's Avatar

Join Date: May 2011
Region: Michigan
Posts: 655
I agree if your going to stay with a 2v then id look into tea also think intake as well P51 expensive but nice. There are others. Also a decent cam you don't need anything wild
32vNomad is offline   Reply With Quote
Old 06-22-2012, 03:11 PM   #182
Lorraine's driver

Regular

ab_mach1's Avatar

Join Date: Feb 2012
Location: Indianapolis
Region: Indiana
Posts: 7,858
Quote:
Originally Posted by 32vNomad
I agree if your going to stay with a 2v then id look into tea also think intake as well P51 expensive but nice. There are others. Also a decent cam you don't need anything wild
Can you put DOHC heads on a typical 2v engine block? Is that a totally different block?
__________________
Instagram: @ab_mach1
ab_mach1 is offline   Reply With Quote
Old 06-22-2012, 05:03 PM   #183
Registered Member
Regular

32vNomad's Avatar

Join Date: May 2011
Region: Michigan
Posts: 655
You sure can. But you would loose a lot of compression because the 4v head has a combustion chamber of 52cc where as the 2v has 42cc (if memory serves me). Now if you where to make a high boost machine (after you change internals of course) then the 4v heads would work. But there is a lot involved in 4v heads then just slapping them on. Let me get you a break down of parts. From what I have serched and found.

Tumble port heads - I got mine from LKQ for 115 w/o cams from a 00 continental.
Timing set- fms 450.00 comes with everything even new fasteners
4v oil pump - 80.00 for a good one.
Source a heater pipe from a Mach 1 0.00?
Intake 560.00 complete on ebay (tb, injectors, sensors,etc)
Basically the list gets bigger. If 4v is in your future then look for a complete motor. Because as I said the bill gets high.
Now myself I went the Mark route. Forged the internals and built it from the ground up.


Attachment 55993
32vNomad is offline   Reply With Quote
Old 06-22-2012, 05:26 PM   #184
Lorraine's driver

Regular

ab_mach1's Avatar

Join Date: Feb 2012
Location: Indianapolis
Region: Indiana
Posts: 7,858
Quote:
Originally Posted by 32vNomad
You sure can. But you would loose a lot of compression because the 4v head has a combustion chamber of 52cc where as the 2v has 42cc (if memory serves me). Now if you where to make a high boost machine (after you change internals of course) then the 4v heads would work. But there is a lot involved in 4v heads then just slapping them on. Let me get you a break down of parts. From what I have serched and found.

Tumble port heads - I got mine from LKQ for 115 w/o cams from a 00 continental.
Timing set- fms 450.00 comes with everything even new fasteners
4v oil pump - 80.00 for a good one.
Source a heater pipe from a Mach 1 0.00?
Intake 560.00 complete on ebay (tb, injectors, sensors,etc)
Basically the list gets bigger. If 4v is in your future then look for a complete motor. Because as I said the bill gets high.
Now myself I went the Mark route. Forged the internals and built it from the ground up.
So when you go forged internals as well as having to bore some for the new pistons, will he be able to keep the compression around stock? I can't remember if he was upgrading the cams or not.
__________________
Instagram: @ab_mach1
ab_mach1 is offline   Reply With Quote
Old 06-22-2012, 11:21 PM   #185
Registered Member
Regular

ColeJohnson's Avatar

Join Date: Jan 2011
Location: Ketchikan, Alaska
Region: Louisiana
Posts: 2,507
Re: Aurora's heart died.

Quote:
Originally Posted by Azure View Post
So when you go forged internals as well as having to bore some for the new pistons, will he be able to keep the compression around stock? I can't remember if he was upgrading the cams or not.
I do plan on forging internals as well as correcting bore to match the new forged pistons. I believe the 4cc dish will retain the stock compression ratio.

I do plan on upgrading to stage 2 comp cams along with spring upgrades. Will this throw anything off?
__________________

2016 Comp Orange GT (current)
Aurora - 2002 Boosted GT! (Sold, sadly)
ColeJohnson is offline   Reply With Quote
Old 06-23-2012, 08:11 AM   #186
Registered Member
Regular

CodyNelson's Avatar

Join Date: Apr 2011
Region: West Virgina
Posts: 1,204
Quote:
Originally Posted by ColeJohnson

I do plan on forging internals as well as correcting bore to match the new forged pistons. I believe the 4cc dish will retain the stock compression ratio.

I do plan on upgrading to stage 2 comp cams along with spring upgrades. Will this throw anything off?
Just make sure you do the math for the compression correctly. But no it shouldn't throw anything off
CodyNelson is offline   Reply With Quote
Old 06-23-2012, 09:50 AM   #187
Registered Member
Regular

95v686gt's Avatar

Join Date: Mar 2012
Region: Kentucky
Posts: 813
I have a dumb question... With the price of everything your doing to the 2v block why didn't you source a teskid block? Seems to be fairly easy to find. Plus if you are forging the internals you could benefit from the teskid's ability to hold high hp numbers. And you could keep the 2v heads if you so wished. Just a thought to think about if you decided to do major boost to it.
__________________
1995 V6 Mustang= Divorced Duals, Flowmaster 2 chambers, NO CATS, Raxiom Halo Projector headlights, Smoked Tails, 17 inch Bullitt Wheels
1997 Mustang GT: 4.6L DOHC http://www.mustangevolution.com/forum/f280/t305270/
1986 Mustang GT= Built 302 SOLD
95v686gt is offline   Reply With Quote
Old 06-23-2012, 01:37 PM   #188
Registered Member
Regular

32vNomad's Avatar

Join Date: May 2011
Region: Michigan
Posts: 655
Re: Aurora's heart died.

Quote:
Originally Posted by 95v686gt View Post
I have a dumb question... With the price of everything your doing to the 2v block why didn't you source a teskid block? Seems to be fairly easy to find. Plus if you are forging the internals you could benefit from the teskid's ability to hold high hp numbers. And you could keep the 2v heads if you so wished. Just a thought to think about if you decided to do major boost to it.
To be honest I think Cole should look for a cheap 97-98 Mark Motor if he is wanting 4v tech. The block weights 85lbs you can't beat that. This is what I would do. Find a cheap mark motor or a short block at least. Get a rolling assemble kit from ModMax. Tear down the mark motor( or cobra) down to the block, have a good machine shop match the pistons, check the block over for square, (possibly) have them assemble the lower end. Bring it home and start the assemble. But that would be me. there are plenty of options out there to do, it just depends on Cole. He has the way to get ahold of me. Just let me know the budget and I can get a package list together.
32vNomad is offline   Reply With Quote
Old 06-23-2012, 02:03 PM   #189
Registered Member
Regular

95v686gt's Avatar

Join Date: Mar 2012
Region: Kentucky
Posts: 813
That's why I asked. I'm doing the same swap you are but into a 97 GT
__________________
1995 V6 Mustang= Divorced Duals, Flowmaster 2 chambers, NO CATS, Raxiom Halo Projector headlights, Smoked Tails, 17 inch Bullitt Wheels
1997 Mustang GT: 4.6L DOHC http://www.mustangevolution.com/forum/f280/t305270/
1986 Mustang GT= Built 302 SOLD
95v686gt is offline   Reply With Quote
Old 06-23-2012, 02:51 PM   #190
Registered Member
Regular

32vNomad's Avatar

Join Date: May 2011
Region: Michigan
Posts: 655
Re: Aurora's heart died.

Quote:
Originally Posted by 95v686gt View Post
That's why I asked. I'm doing the same swap you are but into a 97 GT


[IMG][/IMG]
32vNomad is offline   Reply With Quote
Old 06-23-2012, 02:57 PM   #191
Registered Member
Regular

95v686gt's Avatar

Join Date: Mar 2012
Region: Kentucky
Posts: 813
Quote:
Originally Posted by 32vNomad

[/URL][/IMG]
Did you use the mark 8 oil pan? I've heard it won't work
__________________
1995 V6 Mustang= Divorced Duals, Flowmaster 2 chambers, NO CATS, Raxiom Halo Projector headlights, Smoked Tails, 17 inch Bullitt Wheels
1997 Mustang GT: 4.6L DOHC http://www.mustangevolution.com/forum/f280/t305270/
1986 Mustang GT= Built 302 SOLD
95v686gt is offline   Reply With Quote
Old 06-23-2012, 05:10 PM   #192
Registered Member
Regular

32vNomad's Avatar

Join Date: May 2011
Region: Michigan
Posts: 655
No I bought a cobra pan new from FMS. The only thing I wish I did was have it powder coat. Fyi have that done if you have a new pan.
32vNomad is offline   Reply With Quote
Old 06-23-2012, 05:24 PM   #193
Registered Member
Regular

ForsakenProto's Avatar

Join Date: Jun 2011
Region: North Carolina
Posts: 1,143
I cant tell you how helpful this thread is. I may go try to find a mark viii now for cheap and pull the block out if it
ForsakenProto is offline   Reply With Quote
Old 06-23-2012, 05:30 PM   #194
Registered Member
Regular

95v686gt's Avatar

Join Date: Mar 2012
Region: Kentucky
Posts: 813
I got the pre 97 block and the intake won't work so now I'm dead in the water til I find a intake for it
__________________
1995 V6 Mustang= Divorced Duals, Flowmaster 2 chambers, NO CATS, Raxiom Halo Projector headlights, Smoked Tails, 17 inch Bullitt Wheels
1997 Mustang GT: 4.6L DOHC http://www.mustangevolution.com/forum/f280/t305270/
1986 Mustang GT= Built 302 SOLD
95v686gt is offline   Reply With Quote
Old 06-23-2012, 06:50 PM   #195
Registered Member
Regular

32vNomad's Avatar

Join Date: May 2011
Region: Michigan
Posts: 655
Re: Aurora's heart died.

Quote:
Originally Posted by 95v686gt View Post
I got the pre 97 block and the intake won't work so now I'm dead in the water til I find a intake for it
So your saying that you have B heads? If so I just saw a thread in another forum that has a Mark Intake for 35.00


For Sale a lot of 4 valve parts, some 2 valve parts and oil pans for sale - Ford Mustang Forums : Corral.net Mustang Forum
32vNomad is offline   Reply With Quote
Old 06-23-2012, 07:00 PM   #196
Moderator Emeritus
Regular

deadsp0t's Avatar

Join Date: Aug 2011
Location: MidWorld
Region: Other
Posts: 4,786
I always thought if I ever did a mod motor swap in a 96+ GT, I think a DOHC 5.4L from a navigator would be sweet.. FastLane built one with a turbo that was stupid fast(was a purpose built drag car).
__________________
That's unimpressive
deadsp0t is offline   Reply With Quote
Old 06-24-2012, 03:15 AM   #197
Registered Member
Regular

ColeJohnson's Avatar

Join Date: Jan 2011
Location: Ketchikan, Alaska
Region: Louisiana
Posts: 2,507
I don't plan on going into high power. And honestly I'm a bit scared and intimidated on switching to a different block because I don't know what will fit I what. :/ it's overwhelming.
__________________

2016 Comp Orange GT (current)
Aurora - 2002 Boosted GT! (Sold, sadly)
ColeJohnson is offline   Reply With Quote
Old 06-24-2012, 04:50 AM   #198
Moderator Emeritus
Regular

deadsp0t's Avatar

Join Date: Aug 2011
Location: MidWorld
Region: Other
Posts: 4,786
Quote:
Originally Posted by ColeJohnson
I don't plan on going into high power. And honestly I'm a bit scared and intimidated on switching to a different block because I don't know what will fit I what. :/ it's overwhelming.
A donor car is good in a situation like this where the right parts are not always clear.
__________________
That's unimpressive
deadsp0t is offline   Reply With Quote
Old 06-24-2012, 01:01 PM   #199
Registered Member
Regular

32vNomad's Avatar

Join Date: May 2011
Region: Michigan
Posts: 655
Quote:
Originally Posted by ColeJohnson
I don't plan on going into high power. And honestly I'm a bit scared and intimidated on switching to a different block because I don't know what will fit I what. :/ it's overwhelming.
A 4.6L is a 4.6L it fits. Everything it the same, and is a drop in.

Attachment 56235

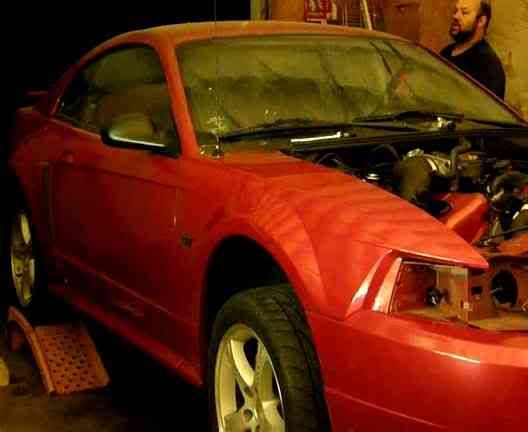

From take out to install. The headers pictured were removed as the are ment to be installed from under.

Attachment 56236



Attachment 56238
32vNomad is offline   Reply With Quote
Old 06-24-2012, 01:12 PM   #200
Lorraine's driver

Regular

ab_mach1's Avatar

Join Date: Feb 2012
Location: Indianapolis
Region: Indiana
Posts: 7,858
Quote:
Originally Posted by 32vNomad

A 4.6L is a 4.6L it fits. Everything it the same, and is a drop in.

From take out to install. The headers pictured were removed as the are ment to be installed from under.
So other than being an aluminum block, the block size itself and mounts are the same on a GT as on a Mach1? I assume the Mark engine is cast iron rather than aluminum, right?
__________________
Instagram: @ab_mach1
ab_mach1 is offline   Reply With Quote
Old 06-24-2012, 02:34 PM   #201
Registered Member
Regular

32vNomad's Avatar

Join Date: May 2011
Region: Michigan
Posts: 655
Quote:
Originally Posted by Azure

So other than being an aluminum block, the block size itself and mounts are the same on a GT as on a Mach1? I assume the Mark engine is cast iron rather than aluminum, right?
No the Mark block is a teskid block 93-98 cobra is teskid 96-99 and 01 is WAP. The Mach1 one is a NVH which its based on the WAP. These are the aluminum blocks
32vNomad is offline   Reply With Quote
Old 06-24-2012, 03:15 PM   #202
Lorraine's driver

Regular

ab_mach1's Avatar

Join Date: Feb 2012
Location: Indianapolis
Region: Indiana
Posts: 7,858
Thanks Nomad! Learning stuff

Cole, not trying to steal your thread. Trying to understand the options at hand.
__________________
Instagram: @ab_mach1
ab_mach1 is offline   Reply With Quote
Old 06-24-2012, 03:22 PM   #203
Registered Member
Regular

ForsakenProto's Avatar

Join Date: Jun 2011
Region: North Carolina
Posts: 1,143
The teskid block is the more desirable one, correct? Ive always heard it was more durable
ForsakenProto is offline   Reply With Quote
Old 06-24-2012, 03:36 PM   #204
Registered Member
Regular

ColeJohnson's Avatar

Join Date: Jan 2011
Location: Ketchikan, Alaska
Region: Louisiana
Posts: 2,507
Quote:
Originally Posted by Azure
Thanks Nomad! Learning stuff

Cole, not trying to steal your thread. Trying to understand the options at hand.
Keep asking. I'm learning with you. And I'm still at the planning stage so changing blocks wouldn't change much.
__________________

2016 Comp Orange GT (current)
Aurora - 2002 Boosted GT! (Sold, sadly)
ColeJohnson is offline   Reply With Quote
Old 06-24-2012, 04:37 PM   #205
Registered Member
Regular

32vNomad's Avatar

Join Date: May 2011
Region: Michigan
Posts: 655
Re: Aurora's heart died.

Quote:
Originally Posted by ForsakenProto View Post
The teskid block is the more desirable one, correct? Ive always heard it was more durable
The teskid block is a sought after block because of the hp capacity it weighs approximately 85lbs the WAP block weighs about 83lbs the webbing was beefed up but the overall block is weaker. Still hp capacity is still in the 700+ range. But the best about the aluminum blocks is that you can have them re-sleeved in case of damaged and or the bore diameter increased.
32vNomad is offline   Reply With Quote
Old 06-24-2012, 04:39 PM   #206
Lorraine's driver

Regular

ab_mach1's Avatar

Join Date: Feb 2012
Location: Indianapolis
Region: Indiana
Posts: 7,858
Quote:
Originally Posted by 32vNomad

The teskid block is a sought after block because of the hp capacity it weighs approximately 85lbs the WAP block weighs about 83lbs the webbing was beefed up but the overall block is weaker. Still hp capacity is still in the 700+ range. But the best about the aluminum blocks is that you can have them re-sleeved in case of damaged and or the bore diameter increased.
Does sleeping the alum block allow for more HP capability? Maybe you can sleeve it knowing you are gonna go w/ higher than 10lb boost?
__________________
Instagram: @ab_mach1
ab_mach1 is offline   Reply With Quote
Old 06-24-2012, 05:21 PM   #207
Registered Member
Regular

ForsakenProto's Avatar

Join Date: Jun 2011
Region: North Carolina
Posts: 1,143
Quote:
Originally Posted by 32vNomad

The teskid block is a sought after block because of the hp capacity it weighs approximately 85lbs the WAP block weighs about 83lbs the webbing was beefed up but the overall block is weaker. Still hp capacity is still in the 700+ range. But the best about the aluminum blocks is that you can have them re-sleeved in case of damaged and or the bore diameter increased.
And of im looking for said block, what cars have them?
ForsakenProto is offline   Reply With Quote
Old 06-24-2012, 06:11 PM   #208
Registered Member
Regular

32vNomad's Avatar

Join Date: May 2011
Region: Michigan
Posts: 655
Re: Aurora's heart died.

Quote:
Originally Posted by 32vNomad View Post
No the Mark block is a teksid block 93-98 cobra is teksid 96-99 and 01 is WAP. The Mach1 one is a NVH which its based on the WAP. These are the aluminum blocks
Easiest was to get a teksid is find a Mark engine. You can however find the blocks on Craigslist or Ebay. But there prices vary because people always list them as Cobra parts. Thinks to remember when looking for teksid engines is that the Mark VIII came with them but the 97-98 used the same beehive springs as the cobras where as the others did not. Also the IMRC's are composite and not aluminum, which are the better ones. But if its the block you want get it and sell the upper end. there are always looking for the cheaper mark intakes and such for swaps.

Quote:
Originally Posted by ForsakenProto View Post
And of im looking for said block, what cars have them?


---------- Post added at 06:11 PM ---------- Previous post was at 05:41 PM ----------

Quote:
Originally Posted by Azure View Post
Does sleeping the alum block allow for more HP capability? Maybe you can sleeve it knowing you are gonna go w/ higher than 10lb boost?
You would only sleeve a block to repair it not to upgrade horsepower. The teksid block has a 1500+hp rating so 10lbs isn't an issue. Just to clarify that the reason the "Terminator" came with Cast Iron "Romeo" blocks is for two reasons. For longevity (they had issues with front main bearings for the supercharger.), and cost ((bearing issue could have been fixed with tougher bearings instead of the OEM aluminum bearing) but also cast iron is tons cheaper). Thats also the reason that in 01 Ford switched to its own in-house casting for their aluminum blocks. When they build cars Profit is number one, for example ford trucks come with aluminum driveshafts for the most, and yet the Mustang GT did not. Its cost and profitability.
32vNomad is offline   Reply With Quote
Old 06-24-2012, 10:33 PM   #209
Registered Member
Regular

ForsakenProto's Avatar

Join Date: Jun 2011
Region: North Carolina
Posts: 1,143
Any mileage range i should look for? If my grandpa sells his i may buy it and use it for parts. Has 183k on it
ForsakenProto is offline   Reply With Quote
Old 06-24-2012, 11:26 PM   #210
Registered Member
Regular

ColeJohnson's Avatar

Join Date: Jan 2011
Location: Ketchikan, Alaska
Region: Louisiana
Posts: 2,507
I feel that I'm pretty sold on the teskid idea if everything swaps over completely!!

And we made progress! Taken all the waves out of the body as well as fixing the damage it had. The front was messed up. It had so many rock chips!! Also fixed the rear bumper damage but no pics of that. :3
Attached Thumbnails
Click image for larger version

Name:	image-1688656722.jpg
Views:	143
Size:	516.7 KB
ID:	56356   Click image for larger version

Name:	image-2774872122.jpg
Views:	121
Size:	470.2 KB
ID:	56357

Click image for larger version

Name:	image-2593100614.jpg
Views:	130
Size:	547.4 KB
ID:	56358   Click image for larger version

Name:	image-3650107586.jpg
Views:	126
Size:	513.3 KB
ID:	56359

__________________

2016 Comp Orange GT (current)
Aurora - 2002 Boosted GT! (Sold, sadly)
ColeJohnson is offline   Reply With Quote
Reply

Lower Navigation
Go Back   Mustang Evolution > 1979-2015 Mustang GT || Tech and Talk > 1996-2004 Mustang GT

Thread Tools Search this Thread
Search this Thread:

Advanced Search

Posting Rules
You may not post new threads
You may not post replies
You may not post attachments
You may not edit your posts

BB code is On
Smilies are On
[IMG] code is On
HTML code is Off
Trackbacks are Off
Pingbacks are On
Refbacks are Off


» Like Us On Facebook



07:15 PM


Powered by vBulletin® Version 3.8.8
Copyright ©2000 - 2017, vBulletin Solutions, Inc.
Content Relevant URLs by vBSEO 3.6.0

MustangEvolution.com is in no way associated with or endorsed by Ford Motor Company.
