What parts for intake swap?

My used 2002 GT came with the crappy Dorman NPI intake. There is nothing physically wrong with my intake, but my car feels very restricted and rich, and "gritty" lol.

I want to swap it out with the Ford PI intake. But will I need a different alternator bracket? I have read that the Dorman requires a different alternator bracket, so if I go back to the stock intake, do I need a different bracket?

Are these the correct parts?:
Amazon.com: Ford Racing M9424P46 Intake Manifold: Automotive
and
Amazon.com: Fel-Pro MS92121-3 Manifold Gasket Set: Automotive

Do I need anything else?
__________________
2012 Mustang Cyclone, 2002 Mustang GT, 2004 F150 FX4, 1999 Ranger O/R 4x4, 2007 Harley FXDB
jefx is offline   Reply With Quote
Sponsored Links
Advertisement

Old 07-19-2014, 10:28 PM   #2
Registered Member
Regular

The_Chech's Avatar

Join Date: Apr 2014
Location: Charlotte
Region: North Carolina
Posts: 976
Just got done installing the ford PI intake manifold. I reused the old alternator bracket and just drilled new holes for it to mount to every thing. That is all you need to swap them out. Fairly simple to change these too. Just make sure you follow the pattern to torque it down properly.
__________________


Oxford White Roush Stage 1 SN# 6925--SOLD but never forgotten!
Kona Blue GT premium - Slammed on BC's and BMR's full rear suspension
The_Chech is offline   Reply With Quote
Old 07-19-2014, 10:42 PM   #3
Staff
Regular
Staff

scottydsntknow's Avatar

Join Date: Apr 2013
Location: JB MDL
Region: New Jersey
Posts: 16,605
Take a pic of the bracket you have, probably can use it. x1000 on making damn sure you torque it right and in the right sequence. 22 ft lbs is the torque value and you can get the sequence from a simple google search. Fel pro gaskets are the only gaskets you want to be using here.
__________________
2000 Mustang GT Steeda #0048

Just because I give you advice, doesn't mean I know more than you. Its just means I've done more stupid ****.
scottydsntknow is online now   Reply With Quote
Sponsored Links
Advertisement

Old 07-21-2014, 07:25 PM   #4
Registered Member
Regular

Join Date: Apr 2014
Location: Outside Chicago
Region: Illinois
Posts: 222
heres some pics of my alternator bracket. It says FORD on it, with a part number. I just need to know if it is compatible with the stock intake manifold linked above... also, do I need a new thermostat gasket? any sort of "nipple" that Ive read about for heater hoses or whatever? o-rings for injectors?

Id like to have all needed parts so that I can do a full swap in one day and drive the car to work the following day.

I have a torque wrench, a decent selection of tools, and quite a bit of wrenching experience.

Any other info about recommended parts are appreciated.
Attached Thumbnails
Click image for larger version

Name:	20140721_171937.jpg
Views:	167
Size:	1.37 MB
ID:	161944   Click image for larger version

Name:	20140721_171949.jpg
Views:	176
Size:	1.11 MB
ID:	161945

Click image for larger version

Name:	20140721_172006.jpg
Views:	178
Size:	987.0 KB
ID:	161946   Click image for larger version

Name:	20140721_172018.jpg
Views:	170
Size:	1.21 MB
ID:	161947

__________________
2012 Mustang Cyclone, 2002 Mustang GT, 2004 F150 FX4, 1999 Ranger O/R 4x4, 2007 Harley FXDB
jefx is offline   Reply With Quote
Old 07-21-2014, 07:49 PM   #5
Staff
Regular
Staff

scottydsntknow's Avatar

Join Date: Apr 2013
Location: JB MDL
Region: New Jersey
Posts: 16,605
That bracket is fine for the FRPP intake.
__________________
2000 Mustang GT Steeda #0048

Just because I give you advice, doesn't mean I know more than you. Its just means I've done more stupid ****.
scottydsntknow is online now   Reply With Quote
Old 07-21-2014, 08:30 PM   #6
Registered Member
Regular

Join Date: Apr 2014
Location: Outside Chicago
Region: Illinois
Posts: 222
cool. thanks. Anything else I should know?
__________________
2012 Mustang Cyclone, 2002 Mustang GT, 2004 F150 FX4, 1999 Ranger O/R 4x4, 2007 Harley FXDB
jefx is offline   Reply With Quote
Old 07-21-2014, 08:44 PM   #7
Staff
Regular
Staff

scottydsntknow's Avatar

Join Date: Apr 2013
Location: JB MDL
Region: New Jersey
Posts: 16,605
Yeah, do the tstat while its apart, only use fel-pro intake gaskets, torque of the intake bolts is 22 ft lbs and work from the middle out, there are torque pattern pics on google images.

Also if your COPs are old now is a good time to rebuild them and do the plugs if the plugs haven't been done in awhile. These cars love Autolite 103 coppers and torque on the plugs is 12 ft lbs. Yes, you NEED to use a torque wrench when doing the plugs.
__________________
2000 Mustang GT Steeda #0048

Just because I give you advice, doesn't mean I know more than you. Its just means I've done more stupid ****.
scottydsntknow is online now   Reply With Quote
Old 07-21-2014, 08:45 PM   #8
Staff
Regular
Staff

scottydsntknow's Avatar

Join Date: Apr 2013
Location: JB MDL
Region: New Jersey
Posts: 16,605
Yeah, do the tstat while its apart, only use fel-pro intake gaskets, torque of the intake bolts is 22 ft lbs and work from the middle out, there are torque pattern pics on google images.

Also if your COPs are old now is a good time to rebuild them and do the plugs if the plugs haven't been done in awhile. These cars love Autolite 103 coppers and torque on the plugs is 12 ft lbs. Yes, you NEED to use a torque wrench when doing the plugs.
__________________
2000 Mustang GT Steeda #0048

Just because I give you advice, doesn't mean I know more than you. Its just means I've done more stupid ****.
scottydsntknow is online now   Reply With Quote
Old 07-27-2014, 12:04 AM   #9
Registered Member
Regular

GHO5T5NIPER's Avatar

Join Date: Sep 2012
Region: Kansas
Posts: 476
Ok this might be a stupid question but how can u tell which intake you have? Pi or non pi? Here's my 02 GT alsoClick image for larger version

Name:	ImageUploadedByMustang Evolution1406437434.988259.jpg
Views:	267
Size:	726.6 KB
ID:	162351Click image for larger version

Name:	ImageUploadedByMustang Evolution1406437447.034344.jpg
Views:	220
Size:	797.1 KB
ID:	162352


Sent from my iPhone using Mustang Evolution
GHO5T5NIPER is offline   Reply With Quote
Old 07-27-2014, 12:25 AM   #10
Registered Member
Regular

Steve96's Avatar

Join Date: Jul 2013
Location: Waterford
Region: Michigan
Posts: 2,386
02 should be the PI unless someone has replaced it with something like a dorman at some point. If It's factory I would assume It's the PI. I'm sure someone will chime in with a way to identify it by codes on it etc.

Sent from my LG-LS980 using Mustang Evolution mobile app
__________________
1996 GT
2003 GT
Follow on Instagram @manicmustangs
Follow on Instagram @steviesstangs
15% off waxgods.com use code: manic15
10% off toplabel.com use code: Manic10
Steve96 is offline   Reply With Quote
Old 07-27-2014, 10:28 AM   #11
Registered Member
Regular

Join Date: Apr 2014
Location: Outside Chicago
Region: Illinois
Posts: 222
you can tell by the front runner
Attached Images

__________________
2012 Mustang Cyclone, 2002 Mustang GT, 2004 F150 FX4, 1999 Ranger O/R 4x4, 2007 Harley FXDB
jefx is offline   Reply With Quote
Old 08-03-2014, 07:28 PM   #12
Registered Member
Regular

Join Date: Apr 2014
Location: Outside Chicago
Region: Illinois
Posts: 222
Just completed the swap and want to update this thread.

I followed the advise given here. I used Fel Pro gaskets and I was very impressed! I guess I was expecting a standard oiled cardboard type gasket, but thats not the case at all! these gaskets are a thing of beauty. the are molded plastic with integrated o-ring seals and even have mounting tabs to fit into the heads in the exact right position.... I have nothing to compare them to as this is the first time I've bought intake gaskets, but im thoroughly impressed!

The Ford PI intake fit perfectly, of course, and even smoothed out my gritty acceleration problem.

My old alternator braket on the Dorman was a perfect fit on the new intake with no modification needed.

The whole project took about 3 hours and included a couple runs to the auto store for COP bolts and coolant. All-in-all, not a hard job and I did it in an afternoon after I got home from work with basic handtools.

I left the battery unplugged during the whole job so it could relearn parameters after it was back together. I drove it for a good 30 minutes for the computer to recalibrate to the new intake, then I took a timed speed run of 0-60 to compare to my old runs with the Dorman.

The results were not was I was expecting. The new intake made no improvement to my lousy 0-60 times, but at least its smooth running, and it even sounds meaner.
__________________
2012 Mustang Cyclone, 2002 Mustang GT, 2004 F150 FX4, 1999 Ranger O/R 4x4, 2007 Harley FXDB
jefx is offline   Reply With Quote
Old 08-04-2014, 05:41 PM   #13
Registered Member
Regular

Steve96's Avatar

Join Date: Jul 2013
Location: Waterford
Region: Michigan
Posts: 2,386
I have a 96 would this be about the same swap as what you did or do I have to alter the alternator bracket?

Sent from my LG-LS980 using Mustang Evolution mobile app
__________________
1996 GT
2003 GT
Follow on Instagram @manicmustangs
Follow on Instagram @steviesstangs
15% off waxgods.com use code: manic15
10% off toplabel.com use code: Manic10
Steve96 is offline   Reply With Quote
Old 08-04-2014, 06:19 PM   #14
Registered Member
Regular

Join Date: Apr 2014
Location: Outside Chicago
Region: Illinois
Posts: 222
Sorry, but i cant give you an answer about that.
__________________
2012 Mustang Cyclone, 2002 Mustang GT, 2004 F150 FX4, 1999 Ranger O/R 4x4, 2007 Harley FXDB
jefx is offline   Reply With Quote
Old 08-04-2014, 06:36 PM   #15
Registered Member
Regular

Eturner's Avatar

Join Date: Aug 2011
Region: Michigan
Posts: 3,257
Quote:
Originally Posted by jefx View Post
Just completed the swap and want to update this thread.

I followed the advise given here. I used Fel Pro gaskets and I was very impressed! I guess I was expecting a standard oiled cardboard type gasket, but thats not the case at all! these gaskets are a thing of beauty. the are molded plastic with integrated o-ring seals and even have mounting tabs to fit into the heads in the exact right position.... I have nothing to compare them to as this is the first time I've bought intake gaskets, but im thoroughly impressed!

The Ford PI intake fit perfectly, of course, and even smoothed out my gritty acceleration problem.

My old alternator braket on the Dorman was a perfect fit on the new intake with no modification needed.

The whole project took about 3 hours and included a couple runs to the auto store for COP bolts and coolant. All-in-all, not a hard job and I did it in an afternoon after I got home from work with basic handtools.

I left the battery unplugged during the whole job so it could relearn parameters after it was back together. I drove it for a good 30 minutes for the computer to recalibrate to the new intake, then I took a timed speed run of 0-60 to compare to my old runs with the Dorman.

The results were not was I was expecting. The new intake made no improvement to my lousy 0-60 times, but at least its smooth running, and it even sounds meaner.

Did you do the Full PI swap?.. Or just the intake?..


Sent from my iPhone using Mustang Evolution
Eturner is offline   Reply With Quote
Old 08-04-2014, 07:15 PM   #16
Registered Member
Regular

Join Date: Apr 2014
Location: Outside Chicago
Region: Illinois
Posts: 222
its an 02
__________________
2012 Mustang Cyclone, 2002 Mustang GT, 2004 F150 FX4, 1999 Ranger O/R 4x4, 2007 Harley FXDB
jefx is offline   Reply With Quote
Old 08-05-2014, 01:29 PM   #17
Staff
Regular
Staff

scottydsntknow's Avatar

Join Date: Apr 2013
Location: JB MDL
Region: New Jersey
Posts: 16,605
Swapping a 96-98 car with NPI heads to the PI intake is not the same as a basic intake replacement. Google "PI intake swap" for multiple how-to threads.
__________________
2000 Mustang GT Steeda #0048

Just because I give you advice, doesn't mean I know more than you. Its just means I've done more stupid ****.
scottydsntknow is online now   Reply With Quote
Old 08-05-2014, 04:24 PM   #18
Registered Member
Regular

Join Date: Jun 2014
Location: Parniak
Region: Wisconsin
Posts: 618

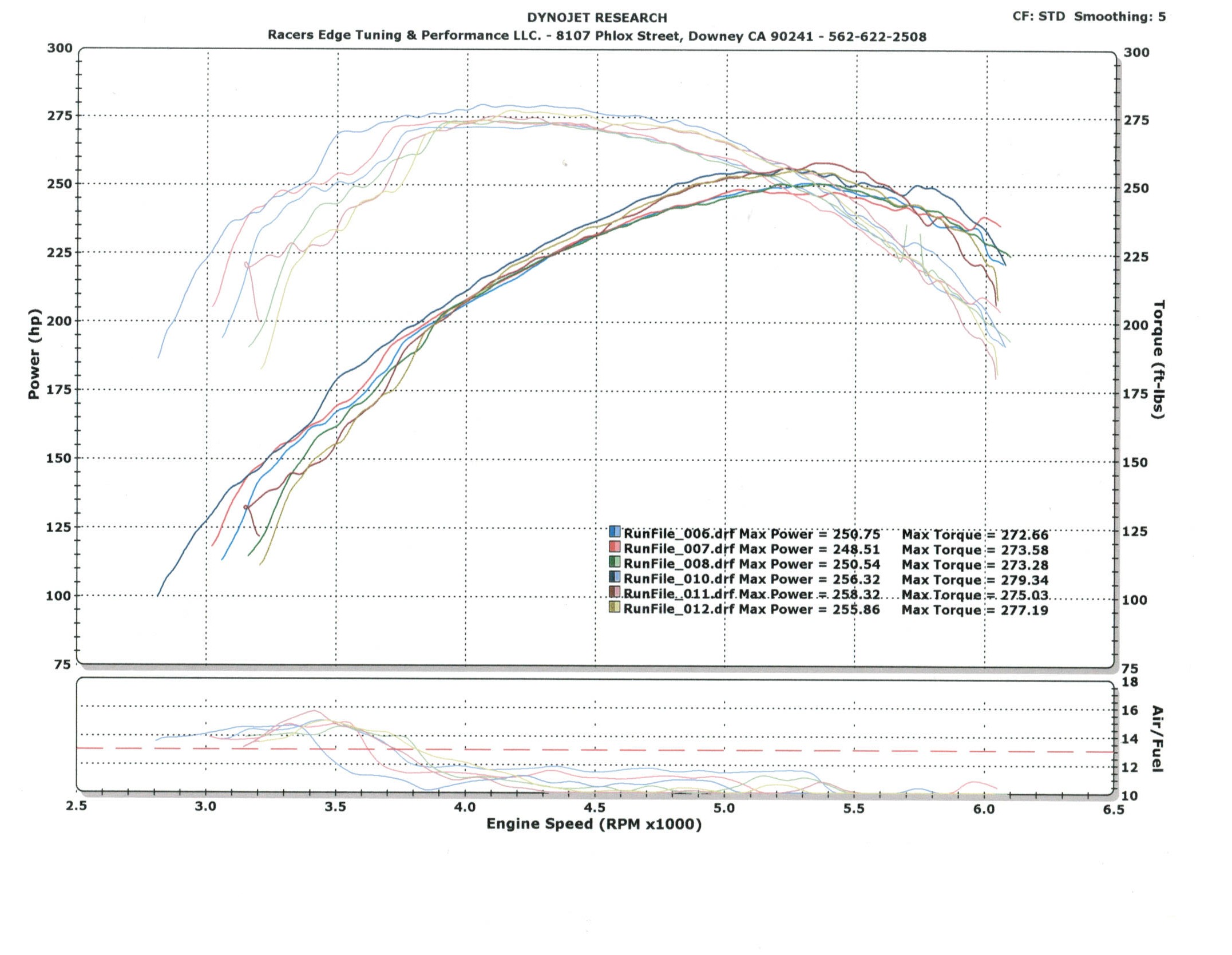

There are videos on the internet showing a 5-6hp increase from Dorman to the ford racing manifold. Not enough to matter for a daily driver really, save your money.
TurboCobra is offline   Reply With Quote
Old 08-06-2014, 12:00 AM   #19
Registered Member
Regular

Steve96's Avatar

Join Date: Jul 2013
Location: Waterford
Region: Michigan
Posts: 2,386
Thanks for the info. I would more than likely do the whole swap then in that case to make it worth while. Better yet I more than likely will be buying another mustang in the next couple years.

Sent from my LG-LS980 using Mustang Evolution mobile app
__________________
1996 GT
2003 GT
Follow on Instagram @manicmustangs
Follow on Instagram @steviesstangs
15% off waxgods.com use code: manic15
10% off toplabel.com use code: Manic10
Steve96 is offline   Reply With Quote
Old 08-06-2014, 12:34 AM   #20
Registered Member
Regular

ty98gt's Avatar

Join Date: Dec 2012
Location: Fremont
Region: California
Posts: 79
Quote:
Originally Posted by Steve96 View Post
Thanks for the info. I would more than likely do the whole swap then in that case to make it worth while. Better yet I more than likely will be buying another mustang in the next couple years.

Sent from my LG-LS980 using Mustang Evolution mobile app

I did the pi intake swap on npi heads and it made a pretty noticeable difference. Its one of the best bang for your buck mods for 96-98 gt's. I'd say it was more like 10-15 hp, even more when tuned.


Sent from my iPhone using Mustang Evolution
__________________
Engine/drivetrain mods: Pro 5.0 Short Shifter, Dragon Plenum-75mm, Accufab TB-70MM, K&N FIPK GEN.2 Air Intake, Bassani Cat Back Exhaust,Bassani Catted X Pipe, 3.73 FRPP Rear Gears,Ford Racing TA Rear Diff Cover,

Bunch of suspension goodies
ty98gt is offline   Reply With Quote
Old 08-06-2014, 07:10 AM   #21
Staff
Regular
Staff

scottydsntknow's Avatar

Join Date: Apr 2013
Location: JB MDL
Region: New Jersey
Posts: 16,605
Quote:
Originally Posted by TurboCobra View Post
There are videos on the internet showing a 5-6hp increase from Dorman to the ford racing manifold. Not enough to matter for a daily driver really, save your money.
Plz reference said videos.
__________________
2000 Mustang GT Steeda #0048

Just because I give you advice, doesn't mean I know more than you. Its just means I've done more stupid ****.
scottydsntknow is online now   Reply With Quote
Old 08-06-2014, 08:01 AM   #22
Registered Member
Regular

rollo1987's Avatar

Join Date: Jun 2014
Location: Fort Irwin
Region: California
Posts: 271
I installed the dorman used same alternator bracket that the car came with. The box came with a bracket. But didn't need it. Kicking my self I the but now buti that dam thing. So goin to wait till I fix my problems first. Then but the pi one.


Sent from my iPhone using Mustang Evolution
rollo1987 is offline   Reply With Quote
Old 08-08-2014, 12:10 AM   #23
Registered Member
Regular

Join Date: Jun 2014
Location: Parniak
Region: Wisconsin
Posts: 618
Quote:
Originally Posted by scottydsntknow View Post
Plz reference said videos.

first 3 pulls are with the Dorman
last 3 pulls are with the ford racing intake
TurboCobra is offline   Reply With Quote
Old 08-08-2014, 06:47 AM   #24
Staff
Regular
Staff

scottydsntknow's Avatar

Join Date: Apr 2013
Location: JB MDL
Region: New Jersey
Posts: 16,605
Quote:
Originally Posted by TurboCobra View Post

first 3 pulls are with the Dorman
last 3 pulls are with the ford racing intake

Fom that chart I'm seeing up to a 10rwhp gain over the Dorman from an auto car with no other changes (248-258 both on the second runs respectively). PI intake is $50-$60 more than the Dorman brand new. If you don't think 10rwhp for $50 is worth it for a bolt on 2V you are nucking futs.

Even if we are talking about replacing a Dorman one has already spent money on, $215 for 10rwhp that you can do in an evening is still very worth it.
__________________
2000 Mustang GT Steeda #0048

Just because I give you advice, doesn't mean I know more than you. Its just means I've done more stupid ****.
scottydsntknow is online now   Reply With Quote
Old 08-08-2014, 12:06 PM   #25
Registered Member
Regular

Join Date: Jun 2014
Location: Parniak
Region: Wisconsin
Posts: 618
1. First Run - Gains 5.57 HP and 6.68 tq
2. Second - Gains 9.81 and 1.45 tq
3. Third Run - Gains 5.32 HP and 3.91 tq

Not sure of the math or dynos or averages but I don't see an easy 10rwhp gain from this. IF your building your car up then of course it is worth the time and money hands down not arguing that at all! If you already have a dorman and your car is a dd you shouldn't loose sleep. Your not loosing 20 hp and 20 tq as I have read on this site.

But as Scotty says for $50-$60 more than the Dorman you could have the proper intake. And would kind of be stupid to cheap out when doing the replacement since we all know at some point we had to or will have to replace the crappy stock one that IS going to crack
TurboCobra is offline   Reply With Quote
Reply

Lower Navigation
Go Back   Mustang Evolution > 1979-2015 Mustang GT || Tech and Talk > 1996-2004 Mustang GT

Thread Tools Search this Thread
Search this Thread:

Advanced Search

Posting Rules
You may not post new threads
You may not post replies
You may not post attachments
You may not edit your posts

BB code is On
Smilies are On
[IMG] code is On
HTML code is Off
Trackbacks are Off
Pingbacks are On
Refbacks are Off


Similar Threads
Thread Thread Starter Forum Replies Last Post
intake swap on a 94 gt intake kell97Gt 1979-1995 Mustang GT 5 10-14-2012 02:09 PM
v6 to true exaust. buying parts. am i buying the right parts steveyb927 Pre-2005 V6 Mustang 4 04-16-2009 11:04 PM
Crazy Singe Port Performance Parts/ 94-03 Parts Forged! v6stanger Mustang Parts for Sale and Wanted 4 10-27-2006 01:13 PM
4.2 split port engine parts/torque converter/steeda parts Horse Mustang Parts for Sale and Wanted 33 03-17-2006 05:03 PM
parts parts!!! whipster24 The Bar 1 04-22-2005 05:37 PM

» Like Us On Facebook



05:09 PM


Powered by vBulletin® Version 3.8.8
Copyright ©2000 - 2017, vBulletin Solutions, Inc.
Content Relevant URLs by vBSEO 3.6.0

MustangEvolution.com is in no way associated with or endorsed by Ford Motor Company.
