2012 leaking coolant. Help!

Found my car dripping coolant today. Hard to tell exactly where it's coming from. If yall could look at the pics and tell me what you think. It was a pain to get my phone in there to get pics.





Jeremy
__________________
Jeremy
2016 Ruby Red PP GT
ponie1992 is offline   Reply With Quote
Sponsored Links
Advertisement

Old 05-05-2015, 11:14 AM   #2
Kevin.Cook
Guest

Posts: n/a
How is your coolant level? If you can reach, maybe check and make sure those bolts are tight. Doesnt seem to be a major leak so I guess it could be worse. Any warranty left on your car?

Sent from my SAMSUNG-SM-G900A using Mustang Evolution mobile app
  Reply With Quote
Old 05-05-2015, 11:16 AM   #3
Staff

Regular
Staff

Strange Mud's Avatar

Join Date: Aug 2013
Location: Small Town
Region: Connecticut
Posts: 5,022
I've seen a handful of threads with bad water pumps
__________________
2012 V6 with suspension, shifting, stopping and sound mods.
Strange Mud is online now   Reply With Quote
Sponsored Links
Advertisement

Old 05-05-2015, 11:17 AM   #4
Registered Member
Regular

iguanaman3's Avatar

Join Date: Jun 2014
Location: Bokeelia
Region: Florida
Posts: 326
That leak looks like it is right below the water pump. It is known to fail pretty regularly. At least it is easy to get at.
iguanaman3 is offline   Reply With Quote
Old 05-05-2015, 11:17 AM   #5
Registered Member
Regular

Whitelightning's Avatar

Join Date: Apr 2012
Location: Tuscaloosa
Region: Alabama
Posts: 3,463
Water pumps go out on these cars often. It's water pump. Easy fix
__________________
Any Speed over 55 mph may kill you... that's why i drive 60
Whitelightning is offline   Reply With Quote
Old 05-05-2015, 11:40 AM   #6
Registered Member
Regular

Diehard's Avatar

Join Date: Mar 2014
Location: North Reading
Region: Massachusetts
Posts: 2,112
Well it certainly looks like the source could be the water pump. You should however, try to confirm by getting a closer look at the shaft area.
Shortly after you shut it off may be the best time to see it flowing a bit. Even if you have to remove the pulley.
__________________
____________________________________________________
14 V6 auto, MCA, PP, BBK Shorties, MMD Hood Struts, Borla Touring A/B's, MAC ProChamber, aFe drop-in Filter
~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~
Lets not forget, an opinion is a judgment, viewpoint, or statement about matters commonly considered to be subjective.
Diehard is offline   Reply With Quote
Old 05-05-2015, 03:34 PM   #7
Registered Member

Regular

tym_v6's Avatar

Join Date: Feb 2015
Location: Suck it, Goodell
Region: Massachusetts
Posts: 1,340
Can't see the pics at work, but be sure to rule out the cheap/easy stuff, like a leaky hose to the degas bottle that might be dripping down.
__________________
2013 Grabber Blue V6 Premium auto | MCA | Performance Package | BMR/Shelby Panhard Bar | Steeda Rear End Links | BMR Rear LCAs | JLT Oil Sep | FRPP Diff Cover | DSS Aluminum Shaft | Adaptive Shift Delete | Cervini Type 4 Ram Air Hood
Order: 10/13/12 | VIN: 10/19/12 | Sticker: 11/3/12 | Build: 11/30/12 | Mine: 12/22/12!

Restoration project back on the road: my dad's 1969 Camaro SS 350
tym_v6 is offline   Reply With Quote
Old 05-05-2015, 06:19 PM   #8
Registered Member
Regular

ponie1992's Avatar

Join Date: Jul 2014
Location: Lexington
Region: South Carolina
Posts: 1,052
It appears to be coming from somewhere within that recessed area. I can't get my head in there to get a good look at exactly where it's coming from. Would this be covered under the drivetrain warranty? I'm at almost 34000 miles and well over 3 years. Coolant tank level looks ok. This had to just recently start cause before today, I haven't noticed any puddles.

Jeremy
__________________
Jeremy
2016 Ruby Red PP GT
ponie1992 is offline   Reply With Quote
Old 05-05-2015, 11:05 PM   #9
Registered Member
Regular

Sakib's Avatar

Join Date: Aug 2013
Location: Bryan
Region: Texas
Posts: 813
Quote:
Originally Posted by ponie1992 View Post
It appears to be coming from somewhere within that recessed area. I can't get my head in there to get a good look at exactly where it's coming from. Would this be covered under the drivetrain warranty? I'm at almost 34000 miles and well over 3 years. Coolant tank level looks ok. This had to just recently start cause before today, I haven't noticed any puddles.

Jeremy
It should be covered under drivetrain warranty, unless your dealer pulls the same B.S. my local dealer did when I had a cooling system issue. They blamed the failure on the $11 overflow hose that goes from the degas bottle to the thermostat, and since they claimed that was the "causal part", they wouldn't cover the water pump failure under the drivetrain warranty, because the overflow hose is not a part of the drivetrain by their definition. Quoted me $571 for parts and labor for the water pump, thermostat gasket, and hose. The "stealership". Don't let them pull that crap on you. And no, they did not get my money.

If you end up diagnosing that it is the water pump and want to DIY it, I have a brand new water pump still in its original packaging that I'll sell to you. I bought it because I thought it was bad when the dealership told me that, but it turns out all that was wrong was that my coolant was low. I topped it off and burped the system, and have driven 2,000 miles now and the coolant level has not gone down a bit.
Sakib is offline   Reply With Quote
Old 05-06-2015, 05:12 AM   #10
Registered Member
Regular

ponie1992's Avatar

Join Date: Jul 2014
Location: Lexington
Region: South Carolina
Posts: 1,052
I'm wondering if they'll cover mine because I have modded my car (intake, exhaust and tune). I'm thinking they'll try to blame the mods even though it's a known issue.

Jeremy
__________________
Jeremy
2016 Ruby Red PP GT
ponie1992 is offline   Reply With Quote
Old 05-06-2015, 05:44 AM   #11
Admin

Supporter
Admin

bucko's Avatar

Join Date: Nov 2012
Location: Lake Mary
Region: Florida
Posts: 5,822
The "tune" is what they may use against you. A CAI or exhaust will not effect the water pump, but the tune may be used against you.

Does not cost anything to take the car in under warranty and find out....
__________________
It is better to keep your mouth closed and let people think you are a fool than to open it and remove all doubt.
bucko is offline   Reply With Quote
Old 05-06-2015, 06:24 AM   #12
Registered Member

Regular

tym_v6's Avatar

Join Date: Feb 2015
Location: Suck it, Goodell
Region: Massachusetts
Posts: 1,340
Quote:
Originally Posted by bucko View Post
Does not cost anything to take the car in under warranty and find out....
Unless they damage the car while it's in their possession, like they did to mine. No more stealership for me if I can avoid it.
__________________
2013 Grabber Blue V6 Premium auto | MCA | Performance Package | BMR/Shelby Panhard Bar | Steeda Rear End Links | BMR Rear LCAs | JLT Oil Sep | FRPP Diff Cover | DSS Aluminum Shaft | Adaptive Shift Delete | Cervini Type 4 Ram Air Hood
Order: 10/13/12 | VIN: 10/19/12 | Sticker: 11/3/12 | Build: 11/30/12 | Mine: 12/22/12!

Restoration project back on the road: my dad's 1969 Camaro SS 350
tym_v6 is offline   Reply With Quote
Old 05-06-2015, 06:56 AM   #13
Registered Member
Regular

ponie1992's Avatar

Join Date: Jul 2014
Location: Lexington
Region: South Carolina
Posts: 1,052
Quote:
Originally Posted by bucko View Post
The "tune" is what they may use against you. A CAI or exhaust will not effect the water pump, but the tune may be used against you.

Does not cost anything to take the car in under warranty and find out....
Yeah, that's my worry. I couldn't find a TSB for the pump, so my guess is they'll try to get out of it.

Jeremy
__________________
Jeremy
2016 Ruby Red PP GT
ponie1992 is offline   Reply With Quote
Old 05-06-2015, 08:32 AM   #14
Registered Member
Regular

ponie1992's Avatar

Join Date: Jul 2014
Location: Lexington
Region: South Carolina
Posts: 1,052
I looked today after I got home from my girl's house. Takes me about 40 minutes of driving. Everything looked rather dry. I looked after being home for about an hour and a half. When I noticed this yesterday, I had the front end jacked up to install my fog lights. Maybe the front being up allows the coolant to weep out more? I have no idea.
ponie1992 is offline   Reply With Quote
Old 05-06-2015, 09:41 AM   #15
Registered Member
Regular

ponie1992's Avatar

Join Date: Jul 2014
Location: Lexington
Region: South Carolina
Posts: 1,052
Found a TSB!

Coolant Pump Leakage Due to Air Entering the System – 2011-2014 Ford MustangVitaly's Mobile Auto Diagnostics, LLC - Vitaly's Mobile Auto Diagnostics, LLC
ponie1992 is offline   Reply With Quote
Old 05-06-2015, 10:56 AM   #16
Registered Member
Regular

Sakib's Avatar

Join Date: Aug 2013
Location: Bryan
Region: Texas
Posts: 813
That's the same one they pulled for mine. Note that it says it's not covered under ESP because the causal part is the overflow hose. Take it in asap before you hit 36K.
Sakib is offline   Reply With Quote
Old 05-06-2015, 12:30 PM   #17
Registered Member
Regular

ponie1992's Avatar

Join Date: Jul 2014
Location: Lexington
Region: South Carolina
Posts: 1,052
Quote:
Originally Posted by Sakib View Post
That's the same one they pulled for mine. Note that it says it's not covered under ESP because the causal part is the overflow hose. Take it in asap before you hit 36K.
Called them today and the service guy said if the hose does not have the check valve, then they will replace the hose and the pump. I'm taking it in Friday morning.

Jeremy
__________________
Jeremy
2016 Ruby Red PP GT
ponie1992 is offline   Reply With Quote
Old 05-07-2015, 07:11 AM   #18
Registered Member
Regular

ponie1992's Avatar

Join Date: Jul 2014
Location: Lexington
Region: South Carolina
Posts: 1,052
Stopped by the dealer this morning to make sure this repair would be covered and it is indeed covered under the drivetrain warranty. Fyi, the base part number that he used to check coverage is the pump part number, 8501 I believe.

Jeremy
__________________
Jeremy
2016 Ruby Red PP GT
ponie1992 is offline   Reply With Quote
Old 05-07-2015, 08:09 AM   #19
Registered Member
Regular

Sakib's Avatar

Join Date: Aug 2013
Location: Bryan
Region: Texas
Posts: 813
Quote:
Originally Posted by ponie1992 View Post
Stopped by the dealer this morning to make sure this repair would be covered and it is indeed covered under the drivetrain warranty. Fyi, the base part number that he used to check coverage is the pump part number, 8501 I believe.

Jeremy
You have a better dealer than me. That base part number is what makes all the difference.
Sakib is offline   Reply With Quote
Old 05-07-2015, 08:32 AM   #20
Registered Member
Regular

ponie1992's Avatar

Join Date: Jul 2014
Location: Lexington
Region: South Carolina
Posts: 1,052
Quote:
Originally Posted by Sakib View Post
You have a better dealer than me. That base part number is what makes all the difference.
He even let me see his pc monitor when he checked. What a relief!

Jeremy
__________________
Jeremy
2016 Ruby Red PP GT
ponie1992 is offline   Reply With Quote
Old 05-08-2015, 08:23 PM   #21
Registered Member
Regular

ponie1992's Avatar

Join Date: Jul 2014
Location: Lexington
Region: South Carolina
Posts: 1,052
The dealer took care of it under warranty. Left the tune in and had no issue. Thank goodness!

Jeremy
__________________
Jeremy
2016 Ruby Red PP GT
ponie1992 is offline   Reply With Quote
Old 05-08-2015, 09:09 PM   #22
Registered Member

Regular

tym_v6's Avatar

Join Date: Feb 2015
Location: Suck it, Goodell
Region: Massachusetts
Posts: 1,340
^ So, was it the pump?
__________________
2013 Grabber Blue V6 Premium auto | MCA | Performance Package | BMR/Shelby Panhard Bar | Steeda Rear End Links | BMR Rear LCAs | JLT Oil Sep | FRPP Diff Cover | DSS Aluminum Shaft | Adaptive Shift Delete | Cervini Type 4 Ram Air Hood
Order: 10/13/12 | VIN: 10/19/12 | Sticker: 11/3/12 | Build: 11/30/12 | Mine: 12/22/12!

Restoration project back on the road: my dad's 1969 Camaro SS 350
tym_v6 is offline   Reply With Quote
Old 05-08-2015, 10:09 PM   #23
Registered Member
Regular

ponie1992's Avatar

Join Date: Jul 2014
Location: Lexington
Region: South Carolina
Posts: 1,052
Quote:
Originally Posted by tym_v6 View Post
^ So, was it the pump?
The hose going from the thermostat housing to the degass bottle (overflow tank) causes air to get into the system. This causes the pump to fail. The fix is installing a new hose with a check valve and replacing the pump.

Jeremy
__________________
Jeremy
2016 Ruby Red PP GT
ponie1992 is offline   Reply With Quote
Old 05-08-2015, 11:17 PM   #24
Registered Member
Regular

iguanaman3's Avatar

Join Date: Jun 2014
Location: Bokeelia
Region: Florida
Posts: 326
So all of us without check valves in that hose will have their water pumps fail? I checked mine and there is none. I am thinking about replacing the hose BEFORE the pump fails. It's $50 shipped but it is cheaper than a pump AND a hose. Did you get a part number on that hose so I can double check it?
iguanaman3 is offline   Reply With Quote
Old 05-09-2015, 12:26 AM   #25
Registered Member

Regular

tym_v6's Avatar

Join Date: Feb 2015
Location: Suck it, Goodell
Region: Massachusetts
Posts: 1,340
^ Good thinking.
__________________
2013 Grabber Blue V6 Premium auto | MCA | Performance Package | BMR/Shelby Panhard Bar | Steeda Rear End Links | BMR Rear LCAs | JLT Oil Sep | FRPP Diff Cover | DSS Aluminum Shaft | Adaptive Shift Delete | Cervini Type 4 Ram Air Hood
Order: 10/13/12 | VIN: 10/19/12 | Sticker: 11/3/12 | Build: 11/30/12 | Mine: 12/22/12!

Restoration project back on the road: my dad's 1969 Camaro SS 350
tym_v6 is offline   Reply With Quote
Old 05-09-2015, 05:30 AM   #26
Registered Member
Regular

ponie1992's Avatar

Join Date: Jul 2014
Location: Lexington
Region: South Carolina
Posts: 1,052
Quote:
Originally Posted by iguanaman3 View Post
So all of us without check valves in that hose will have their water pumps fail? I checked mine and there is none. I am thinking about replacing the hose BEFORE the pump fails. It's $50 shipped but it is cheaper than a pump AND a hose. Did you get a part number on that hose so I can double check it?
Here are the parts the dealer used.



Jeremy
__________________
Jeremy
2016 Ruby Red PP GT
ponie1992 is offline   Reply With Quote
Old 05-09-2015, 05:38 AM   #27
Staff

Regular
Staff

Strange Mud's Avatar

Join Date: Aug 2013
Location: Small Town
Region: Connecticut
Posts: 5,022

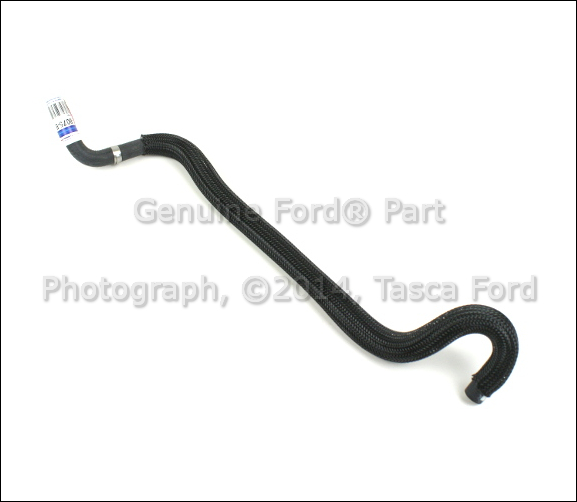

ER3Z-8276-A | OVERFLOW HOSE | OEM Ford Parts

if you google that p/n it takes you to hose...idk about if it has check valve.

Ponnie, can you do a visual? glad your dealer hooked you up!

thx guys (this forum rocks)

I'm thinking as are others of a preemptive strike.
__________________
2012 V6 with suspension, shifting, stopping and sound mods.
Strange Mud is online now   Reply With Quote
Old 05-09-2015, 07:02 AM   #28
Registered Member
Regular

ponie1992's Avatar

Join Date: Jul 2014
Location: Lexington
Region: South Carolina
Posts: 1,052
Here is the new hose on my car. I circled the check valve. It just looks like a type of hose clamp.



Jeremy
__________________
Jeremy
2016 Ruby Red PP GT
ponie1992 is offline   Reply With Quote
Old 05-09-2015, 10:27 AM   #29
Registered Member
Regular

iguanaman3's Avatar

Join Date: Jun 2014
Location: Bokeelia
Region: Florida
Posts: 326
Quote:
Originally Posted by Strange Mud View Post
ER3Z-8276-A | OVERFLOW HOSE | OEM Ford Parts

if you google that p/n it takes you to hose...idk about if it has check valve.

Ponnie, can you do a visual? glad your dealer hooked you up!

thx guys (this forum rocks)

I'm thinking as are others of a preemptive strike.
Strangely that is not the hose that runs to the thermostat housing and has the backflow valve.
According to the diagram it is part #BR3Z8075B and looks like this...


I have no idea why the part numbers are mixed up but that has to be the most expensive foot long hose in history. List is $73?

BR3Z-8075-B*RESERVOIR HOSE for 2012 Ford Mustang
iguanaman3 is offline   Reply With Quote
Old 05-09-2015, 12:48 PM   #30
Registered Member
Regular

ponie1992's Avatar

Join Date: Jul 2014
Location: Lexington
Region: South Carolina
Posts: 1,052
Quote:
Originally Posted by iguanaman3 View Post
Strangely that is not the hose that runs to the thermostat housing and has the backflow valve.
According to the diagram it is part #BR3Z8075B and looks like this...


I have no idea why the part numbers are mixed up but that has to be the most expensive foot long hose in history. List is $73?

BR3Z-8075-B*RESERVOIR HOSE for 2012 Ford Mustang
You have the wrong part number according to what was replaced on my car.

Jeremy
__________________
Jeremy
2016 Ruby Red PP GT
ponie1992 is offline   Reply With Quote
Old 05-09-2015, 01:39 PM   #31
Registered Member
Regular

iguanaman3's Avatar

Join Date: Jun 2014
Location: Bokeelia
Region: Florida
Posts: 326
I know it is a different part number but here is a another pic of the part they call BR3Z8075B.
It looks identical to the picture you posted. I have no idea why the numbers are different. To confuse us I guess. Notice the backflow valve in the pic.

iguanaman3 is offline   Reply With Quote
Old 05-09-2015, 03:24 PM   #32
Registered Member
Regular

roushMarlon831's Avatar

Join Date: Nov 2014
Location: Watsonville
Region: California
Posts: 427
Send a message via Yahoo to roushMarlon831
So which one is the real part and its number? Lol, I'm getting this replaced before anything happens


Sent from my iPhone using Mustang Evolution
roushMarlon831 is offline   Reply With Quote
Old 05-09-2015, 03:31 PM   #33
Registered Member
Regular

ponie1992's Avatar

Join Date: Jul 2014
Location: Lexington
Region: South Carolina
Posts: 1,052
Quote:
Originally Posted by iguanaman3 View Post
I know it is a different part number but here is a another pic of the part they call BR3Z8075B.
It looks identical to the picture you posted. I have no idea why the numbers are different. To confuse us I guess. Notice the backflow valve in the pic.

Probably lol. All I can say is look at the dealer work order picture that I posted. That shows the exact part numbers that were put on my car for this issue.





Quote:
Originally Posted by roushMarlon831 View Post
So which one is the real part and its number? Lol, I'm getting this replaced before anything happens


Sent from my iPhone using Mustang Evolution
Please see my comment above.



Jeremy
__________________
Jeremy
2016 Ruby Red PP GT
ponie1992 is offline   Reply With Quote
Old 05-10-2015, 02:07 AM   #34
Registered Member

Regular

tym_v6's Avatar

Join Date: Feb 2015
Location: Suck it, Goodell
Region: Massachusetts
Posts: 1,340
Quote:
Originally Posted by iguanaman3 View Post
I know it is a different part number but here is a another pic of the part they call BR3Z8075B.
It looks identical to the picture you posted. I have no idea why the numbers are different. To confuse us I guess. Notice the backflow valve in the pic.

That's definitely not the part on the OP's car, though. Notice the braided sleeve in your pic that's not in the OP's pic.

I should check to see if my car has the "upgraded" hose...don't need a water pump crapout!
__________________
2013 Grabber Blue V6 Premium auto | MCA | Performance Package | BMR/Shelby Panhard Bar | Steeda Rear End Links | BMR Rear LCAs | JLT Oil Sep | FRPP Diff Cover | DSS Aluminum Shaft | Adaptive Shift Delete | Cervini Type 4 Ram Air Hood
Order: 10/13/12 | VIN: 10/19/12 | Sticker: 11/3/12 | Build: 11/30/12 | Mine: 12/22/12!

Restoration project back on the road: my dad's 1969 Camaro SS 350
tym_v6 is offline   Reply With Quote
Old 05-10-2015, 06:11 AM   #35
Registered Member
Regular

ponie1992's Avatar

Join Date: Jul 2014
Location: Lexington
Region: South Carolina
Posts: 1,052
Quote:
Originally Posted by tym_v6 View Post
That's definitely not the part on the OP's car, though. Notice the braided sleeve in your pic that's not in the OP's pic.

I should check to see if my car has the "upgraded" hose...don't need a water pump crapout!
Definitely check what's on your car! You don't wanna have this worry. I was freaking out a bit when I found the leak. My dealer could easily have turned me away from covering this repair. Thank goodness they didn't!

Jeremy
__________________
Jeremy
2016 Ruby Red PP GT
ponie1992 is offline   Reply With Quote
Reply

Lower Navigation
Go Back   Mustang Evolution > 4 Cylinder | V6 | Classic Mustangs || Tech and Talk > 2011-2014 V6 Mustang

Thread Tools Search this Thread
Search this Thread:

Advanced Search

Posting Rules
You may not post new threads
You may not post replies
You may not post attachments
You may not edit your posts

BB code is On
Smilies are On
[IMG] code is On
HTML code is Off
Trackbacks are Off
Pingbacks are On
Refbacks are Off


Similar Threads
Thread Thread Starter Forum Replies Last Post
Leaking coolant when parked rollo1987 1996-2004 Mustang GT 5 08-25-2014 07:27 PM
Leaking coolant denises08 2005-2010 V6 Mustang 3 07-26-2013 07:24 PM
Leaking Coolant 88gtCc 1979-1995 Mustang GT 14 05-14-2012 04:47 PM
lower intake manifold leaking coolant shustwit Pre-2005 V6 Mustang 4 06-17-2011 12:28 PM
Coolant leaking 08v6 1979-1995 Mustang GT 2 06-05-2011 04:42 PM

» Like Us On Facebook



07:17 AM


Powered by vBulletin® Version 3.8.8
Copyright ©2000 - 2017, vBulletin Solutions, Inc.
Content Relevant URLs by vBSEO 3.6.0

MustangEvolution.com is in no way associated with or endorsed by Ford Motor Company.
