Old 10-01-2014, 04:52 AM   #36
Registered Member
Regular

Grabber Blue5.0's Avatar

Join Date: Nov 2012
Location: East Haven
Region: Connecticut
Posts: 3,510
There's only "one" upper control arm.
__________________
2017 Dodge Challenger T/A Redline Tri-Coat
2015 Dodge Challenger Scat Pack Jazz Blue Pearl Sold
2015 GT Premium 401A Ingot Silver Sold
2011 GT Premium 401A Grabber Blue Sold
Grabber Blue5.0 is offline   Reply With Quote
Sponsored Links
Advertisement

Old 10-01-2014, 05:41 AM   #37
Registered Member
Regular

jayman33's Avatar

Join Date: Nov 2012
Region: North Carolina
Posts: 515
Quote:
Originally Posted by Renuco612 View Post
So is it safe to say that with those springs, you might not need to change the upper control arms?

Sent from my SAMSUNG-SM-G900A using Mustang Evolution mobile app
Correct, 3rd link = 1 UCA. You should be able to get away with not upgrading the UCA, a stiffer/ stronger bushing will help stiffen the rear a bit.
__________________
A boss.....
jayman33 is offline   Reply With Quote
Old 10-01-2014, 10:05 AM   #38
Registered Member
Regular

Paradone's Avatar

Join Date: May 2014
Location: Lynchburg
Region: Virginia
Posts: 141

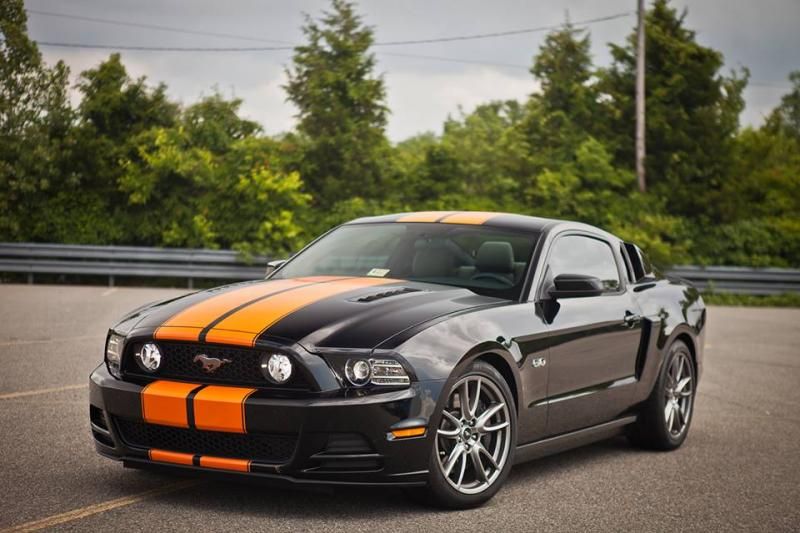

I did all FRPP parts 1.5" drop and Adj panhard LCA relo brackets and arms only thing I did not touch is the UCA haven't had a moments issue and no wheel hop. Pinion angle was fine. Done at a professional shop I don't have the time for self installs however I wish I did but it is what it is.
Paradone is offline   Reply With Quote
Sponsored Links
Advertisement

Old 10-01-2014, 12:06 PM   #39
Registered Member
Regular

Renuco612's Avatar

Join Date: Aug 2014
Location: Union City
Region: California
Posts: 245
Quote:
Originally Posted by Paradone View Post
I did all FRPP parts 1.5" drop and Adj panhard LCA relo brackets and arms only thing I did not touch is the UCA haven't had a moments issue and no wheel hop. Pinion angle was fine. Done at a professional shop I don't have the time for self installs however I wish I did but it is what it is.
I like the setup. I love the stock Brembo wheels, so that's the stance and look that I want.

Sent from my SAMSUNG-SM-G900A using Mustang Evolution mobile app
Renuco612 is online now   Reply With Quote
Old 10-01-2014, 12:30 PM   #40
Registered Member
Regular

WhiteCali5oh's Avatar

Join Date: Jun 2014
Location: Beckley
Region: West Virgina
Posts: 1,396
Did the lcas help you any? With handling


Sent from my iPhone using Mustang Evolution
WhiteCali5oh is offline   Reply With Quote
Old 10-01-2014, 03:08 PM   #41
Registered Member
Regular

Paradone's Avatar

Join Date: May 2014
Location: Lynchburg
Region: Virginia
Posts: 141
yes they are adjustable allot of people do not use adj LCA I only went with what was suggested to me to obtain the look and handling I wanted so that is what I did again no issues not squirrely with TC off, or advanced TC off but with it totally disabled (when you hold down for 5 seconds to disable) it is a quite handful like that.
Paradone is offline   Reply With Quote
Old 10-01-2014, 03:57 PM   #42
Registered Member
Regular

Grabber Blue5.0's Avatar

Join Date: Nov 2012
Location: East Haven
Region: Connecticut
Posts: 3,510
Quote:
Originally Posted by Paradone View Post
I did all FRPP parts 1.5" drop and Adj panhard LCA relo brackets and arms only thing I did not touch is the UCA haven't had a moments issue and no wheel hop. Pinion angle was fine. Done at a professional shop I don't have the time for self installs however I wish I did but it is what it is.
Your pinion angle is not fine if you didn't address the upper control arm. Trust me.
__________________
2017 Dodge Challenger T/A Redline Tri-Coat
2015 Dodge Challenger Scat Pack Jazz Blue Pearl Sold
2015 GT Premium 401A Ingot Silver Sold
2011 GT Premium 401A Grabber Blue Sold
Grabber Blue5.0 is offline   Reply With Quote
Old 10-01-2014, 04:40 PM   #43
Registered Member
Regular

2014oxstang's Avatar

Join Date: Jun 2014
Location: East Longmeadow
Region: Massachusetts
Posts: 2,000
Quote:
Originally Posted by Grabber Blue5.0 View Post
Your pinion angle is not fine if you didn't address the upper control arm. Trust me.

Grabber, which hole is preferred on the BMR bracket? Nobody answered me when I asked earlier.


Sent from my iPhone using Mustang Evolution
2014oxstang is offline   Reply With Quote
Old 10-01-2014, 05:18 PM   #44
Registered Member
Regular

Grabber Blue5.0's Avatar

Join Date: Nov 2012
Location: East Haven
Region: Connecticut
Posts: 3,510
Quote:
Originally Posted by 2014oxstang View Post
Grabber, which hole is preferred on the BMR bracket? Nobody answered me when I asked earlier.
The upper control arm? Upper hole if you're lowered. Hole closest to the body of the car.
__________________
2017 Dodge Challenger T/A Redline Tri-Coat
2015 Dodge Challenger Scat Pack Jazz Blue Pearl Sold
2015 GT Premium 401A Ingot Silver Sold
2011 GT Premium 401A Grabber Blue Sold
Grabber Blue5.0 is offline   Reply With Quote
Old 10-01-2014, 05:27 PM   #45
Registered Member
Regular

2014oxstang's Avatar

Join Date: Jun 2014
Location: East Longmeadow
Region: Massachusetts
Posts: 2,000
Quote:
Originally Posted by Grabber Blue5.0 View Post
The upper control arm? Upper hole if you're lowered. Hole closest to the body of the car.

Ok, I have it right. I got the UCA and bracket before I lowered so I pretty much based it off the OEM unit.


Sent from my iPhone using Mustang Evolution
2014oxstang is offline   Reply With Quote
Old 10-01-2014, 05:44 PM   #46
Registered Member
Regular

Paradone's Avatar

Join Date: May 2014
Location: Lynchburg
Region: Virginia
Posts: 141
Quote:
Originally Posted by Grabber Blue5.0 View Post
Your pinion angle is not fine if you didn't address the upper control arm. Trust me.

It's at -2.3 degrees I think that is well within range, if not guess I will be replacing the rear end one day.
Paradone is offline   Reply With Quote
Old 10-02-2014, 12:42 PM   #47
Registered Member
Regular

WhiteCali5oh's Avatar

Join Date: Jun 2014
Location: Beckley
Region: West Virgina
Posts: 1,396
What should the pinion angle be when lowered ?


Sent from my iPhone using Mustang Evolution
WhiteCali5oh is offline   Reply With Quote
Old 10-02-2014, 04:26 PM   #48
Registered Member
Regular

Ammermeow's Avatar

Join Date: Aug 2014
Location: Riverside, CA
Region: California
Posts: 110
Quote:
Originally Posted by WhiteCali5oh View Post
What should the pinion angle be when lowered ?


Sent from my iPhone using Mustang Evolution
Negative 2 degrees from what I understand.

Sent from my SCH-I535 using Mustang Evolution mobile app
__________________
2012 GT Brembo M6, BBK CAI, Dynomax axleback, Bama tuned, UPR UCA & mount, Hotchkis LCA/panhard bar/adjustable swaybars, Whiteline relocation brackets, Barton shifter & bracket, Eibach ProKit Springs.
Ammermeow is offline   Reply With Quote
Old 10-02-2014, 04:33 PM   #49
Registered Member
Regular

Grabber Blue5.0's Avatar

Join Date: Nov 2012
Location: East Haven
Region: Connecticut
Posts: 3,510
Quote:
Originally Posted by WhiteCali5oh View Post
What should the pinion angle be when lowered ?
As a starting point Autos want -1 to -2 degrees and manuals want -2 to -3 degrees.
__________________
2017 Dodge Challenger T/A Redline Tri-Coat
2015 Dodge Challenger Scat Pack Jazz Blue Pearl Sold
2015 GT Premium 401A Ingot Silver Sold
2011 GT Premium 401A Grabber Blue Sold
Grabber Blue5.0 is offline   Reply With Quote
Old 10-02-2014, 11:13 PM   #50
Registered Member
Regular

diego302's Avatar

Join Date: Apr 2012
Location: Riverside
Region: California
Posts: 27
Try to stay -2 degrees on the pinion angle. If you're looking at replacing shocks, struts, and springs, then go with coilovers, unless you're planning on drag racing. Coilovers for the most part tend to have higher spring rates than lowering springs. You can go with eibach or KW. I actually damaged my driveshaft from not replacing my UCA, once I got my driveshaft replaced, I went with a Steeda adj. UCA and UCA mounting bracket. I mostly do autocross on my 5.0 and the UCA made a big difference in terms of making it more predictable on and off throttle.
diego302 is offline   Reply With Quote
Old 10-03-2014, 07:32 AM   #51
Registered Member
Regular

Renuco612's Avatar

Join Date: Aug 2014
Location: Union City
Region: California
Posts: 245
Quote:
Originally Posted by diego302 View Post
Try to stay -2 degrees on the pinion angle. If you're looking at replacing shocks, struts, and springs, then go with coilovers, unless you're planning on drag racing. Coilovers for the most part tend to have higher spring rates than lowering springs. You can go with eibach or KW. I actually damaged my driveshaft from not replacing my UCA, once I got my driveshaft replaced, I went with a Steeda adj. UCA and UCA mounting bracket. I mostly do autocross on my 5.0 and the UCA made a big difference in terms of making it more predictable on and off throttle.
So do you think if I went with coilovers instead of shocks struts and springs, it's okay to go without the UCA?

Sent from my SAMSUNG-SM-G900A using Mustang Evolution mobile app
Renuco612 is online now   Reply With Quote
Old 10-03-2014, 08:34 AM   #52
Registered Member
Regular

c_rizzle's Avatar

Join Date: Sep 2014
Location: New Orleans
Region: Louisiana
Posts: 1,008
Quote:
Originally Posted by Grabber Blue5.0 View Post
As a starting point Autos want -1 to -2 degrees.
Does it matter how low you go...

ie for an auto:
if you're lowered 1" you need like -1 degree
lowered 1.5" closer to -2 degrees

I always see all this crap like it depends on the car, etc.. etc.
Well, I think that just means noone has taken the time to figure out things properly for the variations in ride height based on cars weight & springs, etc. sure different cars with different options weigh different weight, sure some springs "settle" a little more than others over time, etc..

But if you took the ground to rear fender measurement and said stock "ride height" should be approx. 29.5"+- 1/4",

when lowered if your ride height is
28.5 you need -1 degree...
28.0 = -2
27.5 = -3
etc.
c_rizzle is offline   Reply With Quote
Old 10-03-2014, 09:14 AM   #53
Registered Member
Regular

diego302's Avatar

Join Date: Apr 2012
Location: Riverside
Region: California
Posts: 27
Quote:
Originally Posted by Renuco612 View Post
So do you think if I went with coilovers instead of shocks struts and springs, it's okay to go without the UCA?

Sent from my SAMSUNG-SM-G900A using Mustang Evolution mobile app

Depends on how much you decide to lower your car. I'd definitely get a UCA.


Sent from my iPhone using Mustang Evolution
diego302 is offline   Reply With Quote
Old 10-03-2014, 09:51 AM   #54
Registered Member
Regular

Grabber Blue5.0's Avatar

Join Date: Nov 2012
Location: East Haven
Region: Connecticut
Posts: 3,510
Quote:
Originally Posted by c_rizzle View Post
Does it matter how low you go...

ie for an auto:
if you're lowered 1" you need like -1 degree
lowered 1.5" closer to -2 degrees

I always see all this crap like it depends on the car, etc.. etc.
Well, I think that just means noone has taken the time to figure out things properly for the variations in ride height based on cars weight & springs, etc. sure different cars with different options weigh different weight, sure some springs "settle" a little more than others over time, etc..

But if you took the ground to rear fender measurement and said stock "ride height" should be approx. 29.5"+- 1/4",

when lowered if your ride height is
28.5 you need -1 degree...
28.0 = -2
27.5 = -3
etc.
Yes it does matter how low you go. I just gave a starting point not the end all be all.
__________________
2017 Dodge Challenger T/A Redline Tri-Coat
2015 Dodge Challenger Scat Pack Jazz Blue Pearl Sold
2015 GT Premium 401A Ingot Silver Sold
2011 GT Premium 401A Grabber Blue Sold
Grabber Blue5.0 is offline   Reply With Quote
Old 10-05-2014, 08:24 PM   #55
Registered Member
Regular

Renuco612's Avatar

Join Date: Aug 2014
Location: Union City
Region: California
Posts: 245
What do yall consider would be the best suspension parts for the price. I don't want to go cheap but then yet I'm not trying to win shows or go tracking. I just want it to look good and stay reliable.

Sent from my SAMSUNG-SM-G900A using Mustang Evolution mobile app
Renuco612 is online now   Reply With Quote
Old 10-05-2014, 08:26 PM   #56
Registered Member
Regular

2014oxstang's Avatar

Join Date: Jun 2014
Location: East Longmeadow
Region: Massachusetts
Posts: 2,000
Quote:
Originally Posted by Renuco612 View Post
What do yall consider would be the best suspension parts for the price. I don't want to go cheap but then yet I'm not trying to win shows or go tracking. I just want it to look good and stay reliable.

Sent from my SAMSUNG-SM-G900A using Mustang Evolution mobile app

My opinion would be anything BMR. Steeda as well.


Sent from my iPhone using Mustang Evolution
2014oxstang is offline   Reply With Quote
Old 10-05-2014, 09:58 PM   #57
Registered Member
Regular

Ammermeow's Avatar

Join Date: Aug 2014
Location: Riverside, CA
Region: California
Posts: 110
UPR products, good quality and affordable. I have replaced some Hotchkis part with UPR, wish I had just gone with UPR from the get go.
__________________
2012 GT Brembo M6, BBK CAI, Dynomax axleback, Bama tuned, UPR UCA & mount, Hotchkis LCA/panhard bar/adjustable swaybars, Whiteline relocation brackets, Barton shifter & bracket, Eibach ProKit Springs.
Ammermeow is offline   Reply With Quote
Old 10-06-2014, 06:55 PM   #58
Registered Member
Regular

Join Date: Apr 2014
Location: St-Hubert
Region: Canada
Posts: 74
Quote:
Originally Posted by Grabber Blue5.0 View Post
Your pinion angle is not fine if you didn't address the upper control arm. Trust me.
Can't the pinion angle be adjusted with adjustable LCA, (from maxium motorsport that I bought used ) without changing the UCA? ( also bought used Hotchiks, but crap, now that you guys are saying that is makes bigtime noise, I won't install it)
NoTop5.0 is offline   Reply With Quote
Old 10-06-2014, 07:16 PM   #59
Registered Member
Regular

Grabber Blue5.0's Avatar

Join Date: Nov 2012
Location: East Haven
Region: Connecticut
Posts: 3,510
Quote:
Originally Posted by NoTop5.0 View Post
Can't the pinion angle be adjusted with adjustable LCA, (from maxium motorsport that I bought used ) without changing the UCA? ( also bought used Hotchiks, but crap, now that you guys are saying that is makes bigtime noise, I won't install it)
No it can't. And I wouldn't use adjustable lower control arms.
__________________
2017 Dodge Challenger T/A Redline Tri-Coat
2015 Dodge Challenger Scat Pack Jazz Blue Pearl Sold
2015 GT Premium 401A Ingot Silver Sold
2011 GT Premium 401A Grabber Blue Sold
Grabber Blue5.0 is offline   Reply With Quote
Old 10-06-2014, 08:05 PM   #60
Registered Member
Regular

Riko's Avatar

Join Date: Mar 2014
Location: Alexandria
Region: Virginia
Posts: 51
This is the setup I would like to buy, but I am afraid is going to be too low and scrape the road. What are your thoughts? Is this is a right setup? I don't drag race, it is just a DD.
Attached Thumbnails
Click image for larger version

Name:	Voila_Capture 2014-10-06_09-01-07_PM.jpg
Views:	67
Size:	51.5 KB
ID:	167513   Click image for larger version

Name:	Voila_Capture 2014-10-06_09-00-43_PM.jpg
Views:	75
Size:	82.2 KB
ID:	167514

Riko is offline   Reply With Quote
Old 10-06-2014, 09:24 PM   #61
Registered Member
Regular

2014oxstang's Avatar

Join Date: Jun 2014
Location: East Longmeadow
Region: Massachusetts
Posts: 2,000
My BMR relo's scrape quite a bit even on a slightly uneven road. Happened twice yesterday, quite annoying lol. Pay to play!


Sent from my iPhone using Mustang Evolution
2014oxstang is offline   Reply With Quote
Old 10-06-2014, 09:33 PM   #62
Registered Member
Regular

Join Date: Nov 2013
Location: Conway
Region: New Hampshire
Posts: 28
Check out Ground Controls kit as well. Not cheap but a great value. And built with specially valved Koni Yellow shocks with a lifetime warranty.
Note that after lowering my car with new springs I found that a 1.5 inch lower rear left too little suspension and my car was on hitting the softer Ford Racing bump stops too often even with the Koni Yellows. So now I am doing the job over and will sell my springs and strut mounts.
The Ground Controls kit will let you set the height were you want it; then reset it if you find you want a different height. A little bit more money now will be well spent. There springs are packaged in different weights based on how you state you will be using the car. The springs are also standard coilover type springs that changed to stiffer or softer at a reasonable cost and huge selection. I wish I had done their kit first.
Whatever you do read carefully. IMO Koni is the way to go unless spending far more on high end coilovers; regardless of the springs you pick.
I am also a huge fan of the Watts Link vs Panhard Bar. Mine is a Fays. If you stay with a Panhard Bar don't order a replacement until you have installed your new suspension as you may find the axle is acceptably centered without spending more on a new one. Don't forget with a PB the body center moves over the axle slightly anyway do the the way the PB works.
todcp is offline   Reply With Quote
Old 10-06-2014, 09:40 PM   #63
Registered Member
Regular

Join Date: Nov 2013
Location: Conway
Region: New Hampshire
Posts: 28
Quote:
Originally Posted by Riko View Post
This is the setup I would like to buy, but I am afraid is going to be too low and scrape the road. What are your thoughts? Is this is a right setup? I don't drag race, it is just a DD.
Just a daily driver? ..... your list is way over the top. Just get a good set of springs and Koni SR.T dampers and save a small fortune. Try something like the Steeda Sports. This will transform your car for street driving and maintain a reasonable and comfortable ride height.
todcp is offline   Reply With Quote
Old 10-06-2014, 09:52 PM   #64
Registered Member
Regular

2014oxstang's Avatar

Join Date: Jun 2014
Location: East Longmeadow
Region: Massachusetts
Posts: 2,000
Quote:
Originally Posted by todcp View Post
Just a daily driver? ..... your list is way over the top. Just get a good set of springs and Koni SR.T dampers and save a small fortune. Try something like the Steeda Sports. This will transform your car for street driving and maintain a reasonable and comfortable ride height.

This ^. It's what I did. Love it. Don't love scraping though lol


Sent from my iPhone using Mustang Evolution
2014oxstang is offline   Reply With Quote
Old 10-07-2014, 04:33 PM   #65
Registered Member
Regular

Riko's Avatar

Join Date: Mar 2014
Location: Alexandria
Region: Virginia
Posts: 51
What springs are the lowest I can go without scraping? 1.25 or 1"?
Riko is offline   Reply With Quote
Old 10-07-2014, 06:31 PM   #66
Registered Member
Regular

2014oxstang's Avatar

Join Date: Jun 2014
Location: East Longmeadow
Region: Massachusetts
Posts: 2,000
Quote:
Originally Posted by Riko View Post
What springs are the lowest I can go without scraping? 1.25 or 1"?

I only scraped because I was forced to go down an unevenly paved road. I'm dropped 1.5" and haven't had any issues besides that one incident. It's all in how you drive, your area (if there's crap roads), and angles. It can be done.


Sent from my iPhone using Mustang Evolution
2014oxstang is offline   Reply With Quote
Old 10-07-2014, 08:18 PM   #67
Registered Member
Regular

tj@steeda's Avatar

Join Date: Oct 2011
Region: Georgia
Posts: 1,140
Quote:
What do yall consider would be the best suspension parts for the price. I don't want to go cheap but then yet I'm not trying to win shows or go tracking. I just want it to look good and stay reliable.
We have discount codes available on Steeda Manufactured Products ... you can email me or private message me at tim@steeda.com.

Best Regards,

TJ
__________________
Steeda Autosports
Valdosta, GA & Pompano Beach, FL
Mustang Performance Products
Private Message Me About Special Discount Codes
www.steeda.com
Win A $300 Gift Card
tj@steeda is offline   Reply With Quote
Old 10-07-2014, 09:11 PM   #68
Registered Member
Regular

scc2014gt's Avatar

Join Date: Feb 2014
Location: Atlanta
Region: Georgia
Posts: 113
Hey dentman, what are your wheel and tire specs?

Quote:
Originally Posted by dentman43 View Post
This is the look you will get with 1.5 drop all ford racing stuff , no upper and lower control arms yet those will be installed next week getting the arms from steeda aluminum Attachment 167045Attachment 167046


Sent from my iPhone using Mustang Evolution
__________________
2014 Black Mustang GT. Roush Axleback Exhaust, Airaid Intake, JLT Oil Separator, Black Billet Grille, Fog Light Relocation, 19" sve drifts with 275/40's, D2 Coilovers, BMR Panhard Bar, BRM LCA's and UCA, KOI and Oracle Orange Dip
scc2014gt is offline   Reply With Quote
Old 10-07-2014, 09:36 PM   #69
Registered Member
Regular

c_rizzle's Avatar

Join Date: Sep 2014
Location: New Orleans
Region: Louisiana
Posts: 1,008
Quote:
Originally Posted by Riko View Post
What springs are the lowest I can go without scraping? 1.25 or 1"?
Depends on where you're driving. If you daily drive your car on a mix of roads, including bad roads you probably don't want to go 1.5". If you live in a place with great roads or your car is mostly a track day car, etc... drop it 1.5"+ and you'll be fine. I think 1.0 to 1.25" is the best compromise. It is quite substantial from stock.

The problem is the lower you go, the stiffer you really need to be to limit bottoming out, but then your ride quality suffers. So its a trade off. Some kits try to stay soft at 1.5", but then you're bottoming out on the jounce bumpers all the time.

Personally, I think 1" or 1.25" kits you get most of the benefits (better handling, lower center of gravity, no squat & go, less brake driving, etc.) of the 1.5" springs, with out all the drawbacks (bottoming out the suspension, scraping curbs, potholes, etc) of going that extra bit lower.


I'm not really happy with the springs that I got. (wont mention names at the moment as I'm waiting to see how things pan out) The kit was supposed to be 1" front & 1.25" rear, which in theory should have taken some of the rake out & made the car almost level. But in practice... the front didn't drop a whole inch, and the rear probably dropped about 1.5". So overall not really happy with its saggy a55 appearance.

Wish I had stuck with Ford Racing, the quality control, plug-n-play fit, and bang for buck can't really be beat.
c_rizzle is offline   Reply With Quote
Old 10-07-2014, 09:46 PM   #70
Registered Member
Regular

2014oxstang's Avatar

Join Date: Jun 2014
Location: East Longmeadow
Region: Massachusetts
Posts: 2,000
Quote:
Originally Posted by c_rizzle View Post
Depends on where you're driving. If you daily drive your car on a mix of roads, including bad roads you probably don't want to go 1.5". If you live in a place with great roads or your car is mostly a track day car, etc... drop it 1.5"+ and you'll be fine. I think 1.0 to 1.25" is the best compromise. It is quite substantial from stock.



The problem is the lower you go, the stiffer you really need to be to limit bottoming out, but then your ride quality suffers. So its a trade off. Some kits try to stay soft at 1.5", but then you're bottoming out on the jounce bumpers all the time.



Personally, I think 1" or 1.25" kits you get most of the benefits (better handling, lower center of gravity, no squat & go, less brake driving, etc.) of the 1.5" springs, with out all the drawbacks (bottoming out the suspension, scraping curbs, potholes, etc) of going that extra bit lower.





I'm not really happy with the springs that I got. (wont mention names at the moment as I'm waiting to see how things pan out) The kit was supposed to be 1" front & 1.25" rear, which in theory should have taken some of the rake out & made the car almost level. But in practice... the front didn't drop a whole inch, and the rear probably dropped about 1.5". So overall not really happy.



Wish I had stuck with Ford Racing, the quality control, plug-n-play fit, and bang for buck can't really be beat.

I agree, I probably should've went 1.25" myself because my 1.5" has settled even lower. Haven't bottomed out yet (because of careful driving/pothole dodging) but I have scraped my LCA relo brackets a few times. They sit maybe 2.5" off the ground :/


Sent from my iPhone using Mustang Evolution
2014oxstang is offline   Reply With Quote
Reply

Lower Navigation
Go Back   Mustang Evolution > 1979-2015 Mustang GT || Tech and Talk > 2011-2014 Mustang GT

Thread Tools Search this Thread
Search this Thread:

Advanced Search

Posting Rules
You may not post new threads
You may not post replies
You may not post attachments
You may not edit your posts

BB code is On
Smilies are On
[IMG] code is On
HTML code is Off
Trackbacks are Off
Pingbacks are On
Refbacks are Off


Similar Threads
Thread Thread Starter Forum Replies Last Post
suspension set up A1ex 2011-2014 Mustang GT 18 02-22-2014 10:57 AM
Watts Suspension set up. Six7One 2011-2014 V6 Mustang 0 10-23-2013 11:40 AM
Best suspension set up Bballing0416 1996-2004 Mustang GT 24 02-03-2013 05:55 PM
will trade fairings and lowered suspension for stock suspension vincent1 1996-2004 Mustang GT 2 06-22-2009 08:34 AM
WTB: Suspension Set Up? v6mustangguy Mustang Parts for Sale and Wanted 6 01-28-2004 10:29 PM

» Like Us On Facebook



11:17 PM


Powered by vBulletin® Version 3.8.8
Copyright ©2000 - 2017, vBulletin Solutions, Inc.
Content Relevant URLs by vBSEO 3.6.0

MustangEvolution.com is in no way associated with or endorsed by Ford Motor Company.
